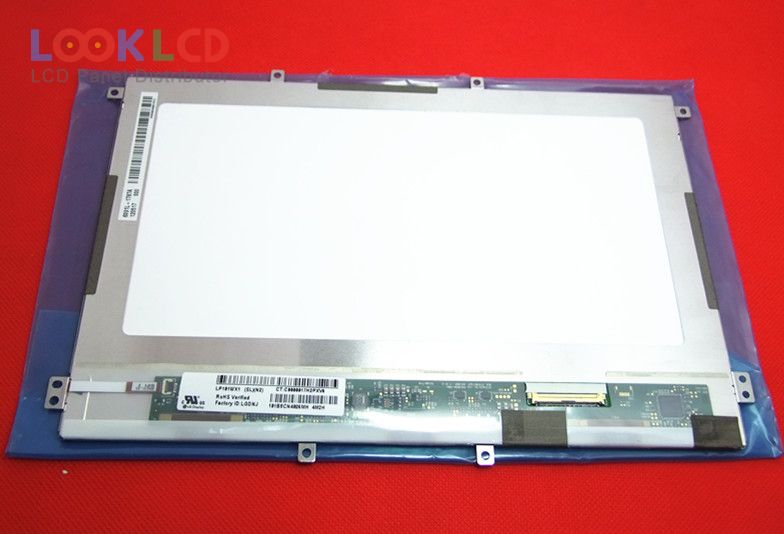

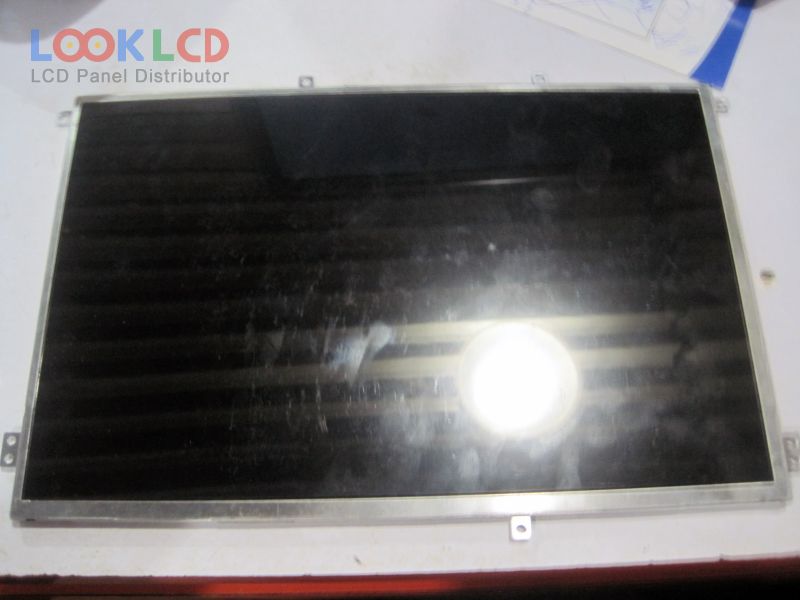

| Varenummer | LP101WX1-SLN2 |
| Mærke | LG Display |
| Størrelse | 10.1 |
| Ansøgning | PAD |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | LG Display |
| panel model | LP101WX1-SLN2 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 216.96×135.6 mm |
| omrids | 241.86×161.6×5.2 mm |
| overflade | Glare (Haze 0%), Reflection 1.5% (Typ.) |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Min.) |
| vise farver | 262K (6-bit) |
| responstid | 35 (Typ.)(Tr+Td); 24 (Typ.)(G to G) |
| synsvinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PAD |
