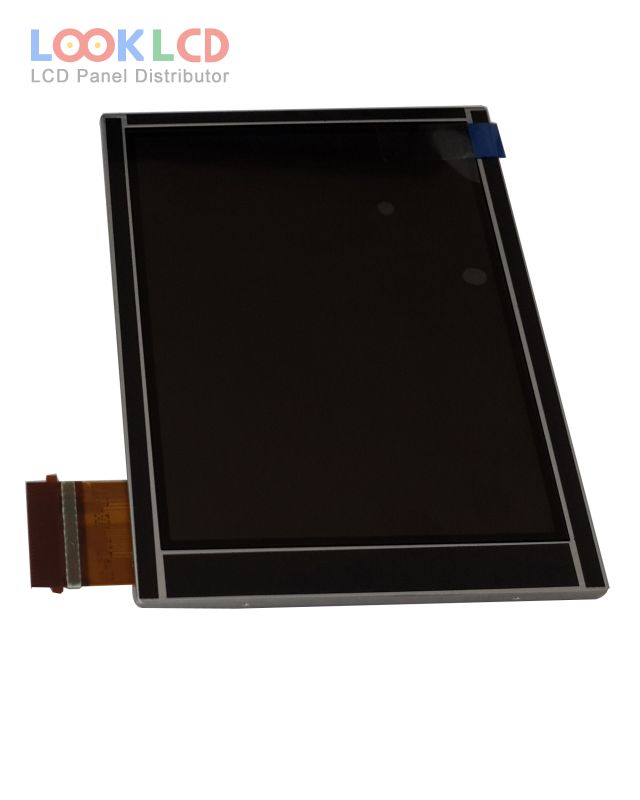

| Varenummer | TD035SHED1 |
| Mærke | TPO |
| Størrelse | 3.5 |
| Ansøgning | MPH |
| Løsning | 480×640 |
| Sammensætning | LCM |
| Lysstyrke | 170 |
| CR | 200:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | TPO |
| panel model | TD035SHED1 |
| paneltype | LTPS TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 480(RGB)×640 , VGA |
| visningstilstand | TN, Normally White, Transflective |
| aktivt område | 53.28×71.04 mm |
| omrids | 64×85 mm |
| overflade | |
| lysstyrke | 170 cd/m² (Typ.) |
| kontrastforhold | 200:1 (Typ.)(Transmissive)8:1 (Typ.)(Reflective) |
| vise farver | 262K (6-bit), CIE193137% |
| responstid | 35 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/70 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 6S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit) + SPI, 51 pins |
| indgangsspænding | 3.0/3.0V (Typ.)(VDC/VDDIO) |
| Ansøgning | MPH |
