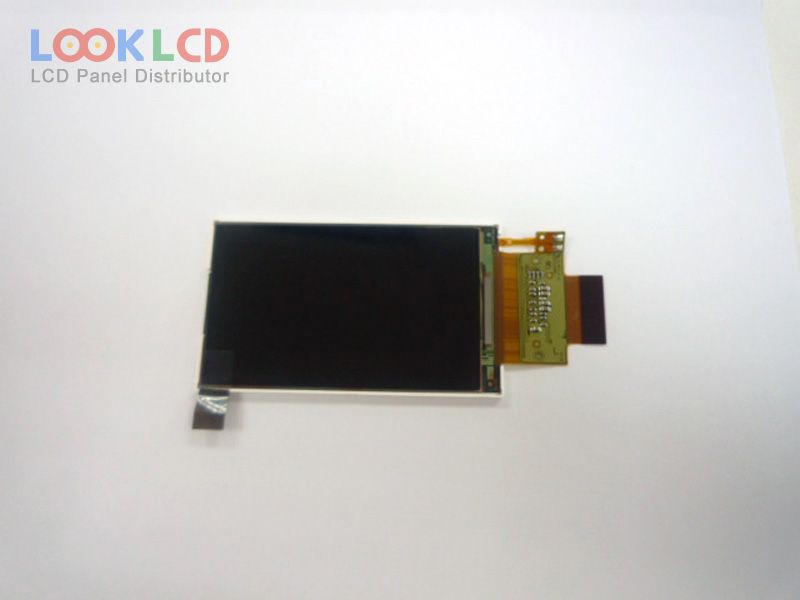

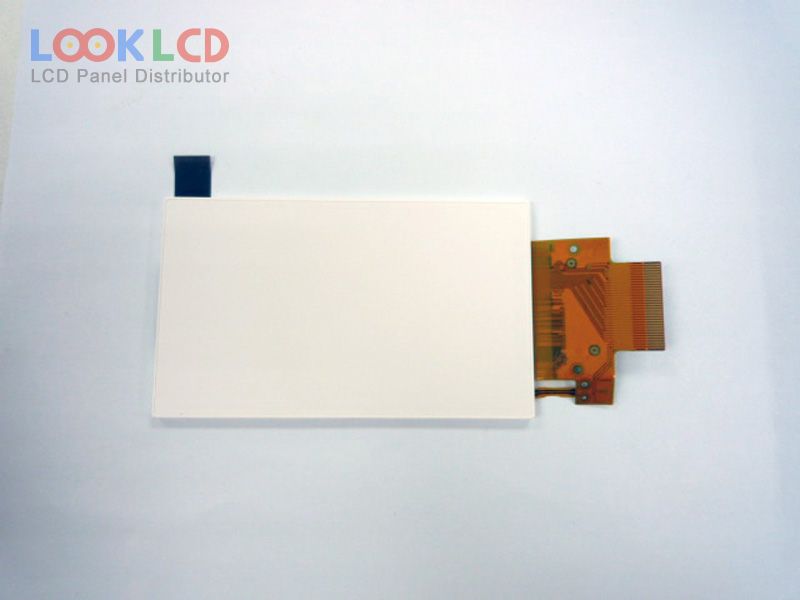

| Varenummer | LS028B7UX01 |
| Mærke | SHARP |
| Størrelse | 2.8 |
| Ansøgning | MPH |
| Løsning | 240×400 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | CPU |
| panel mærke | SHARP |
| panel model | LS028B7UX01 |
| paneltype | CG-Silicon , LCM |
| panelstørrelse | 2.8 inch |
| løsning | 240(RGB)×400 , WQVGA |
| visningstilstand | ASV, Normally Black, Transflective |
| aktivt område | 36×60 mm |
| omrids | 41.8×70.5×2.4 mm |
| overflade | Hard coating (3H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.)(Transmissive)13:1 (Typ.)(Reflective) |
| vise farver | 262K , CIE193170% |
| responstid | 25/15 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| lampe type | 5S1PWLEDWithout Driver |
| signal interface | CPU, 32 pins |
| indgangsspænding | 3.3/3.3V (Typ.)(VDD/VDDIO) |
| Ansøgning | MPH |
| AMS260CM61 | Samsung | 2.6 | 240×320 |
| C0240QGLG-T | CMEL | 2.4 | 240×320 |
| CLAN050LE61 1XE | CPT | 5.0 | 540×960 |
| L5F30774P01 | Epson | 2.6 | 240×320 |
| LH350H02-FD02 | LG Display | 3.5 | 320×480 |
| LH430WV3-SH02 | LG Display | 4.3 | 480×800 |
| LMS241GF31 | Samsung | 2.4 | 240×320 |
| LS040B3SX01 | SHARP | 4.0 | 640×960 |
| LS043T1LX01A | SHARP | 4.3 | 540×960 |
| TFT-GG1P0553UTSW-W-E | Other | 1.7 | 176×220 |
