| Varenummer | NL12876BC26-28 |
| Mærke | NLT |
| Størrelse | 15.3 |
| Ansøgning | IA |
| Løsning | 1280×768 |
| Sammensætning | LCM |
| Lysstyrke | 330 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | NEC |

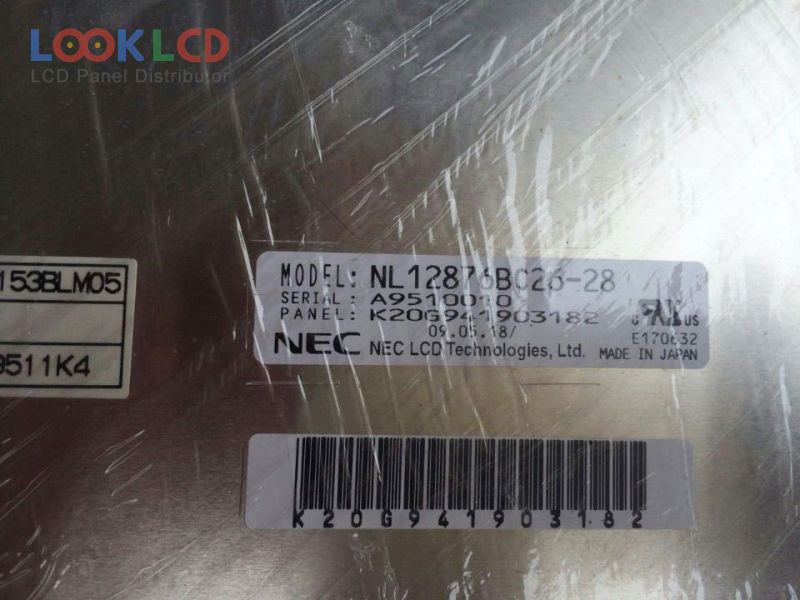

| panel model | NL12876BC26-28 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.3 inch |
| løsning | 1280(RGB)×768 , WXGA |
| visningstilstand | UA-SFT, Normally Black, Transmissive |
| aktivt område | 334.08×200.45 mm |
| omrids | 358×226 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 330 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC), CIE193172% |
| responstid | 14/11 (Typ.)(Tr/Td) |
| synsvinkel | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
