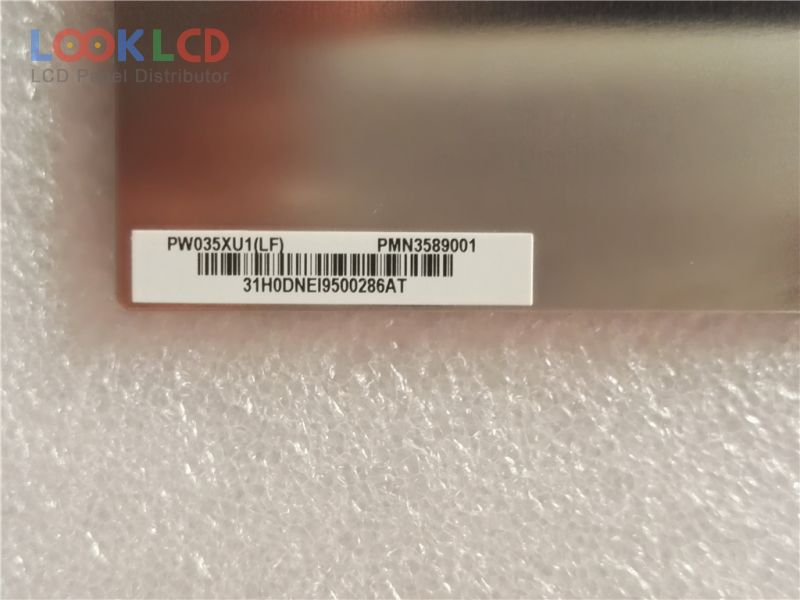

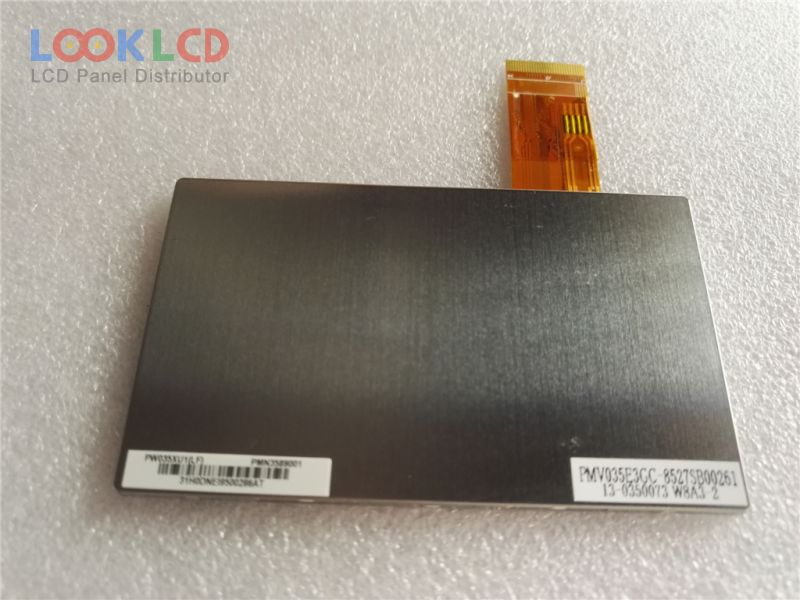

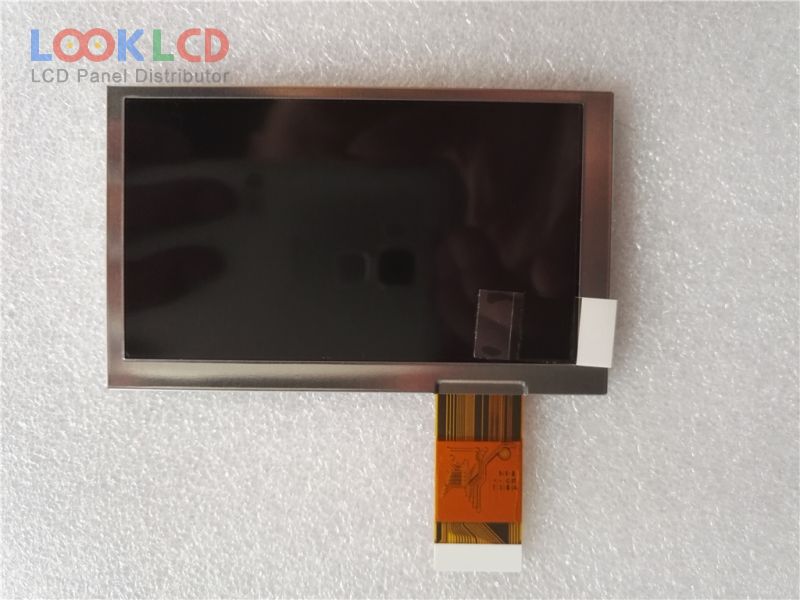

| Varenummer | PW035XU1 |
| Mærke | E Ink |
| Størrelse | 3.5 |
| Ansøgning | DVC |
| Løsning | 320×234 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 400:1 |
| Farver | Full color |
| Baggrundsbelysning | WLED |
| Interface | Analog |
| panel mærke | PVI |
| panel model | PW035XU1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 320(RGB)×234 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 76.32×42.82 mm |
| omrids | 88×53.5 mm |
| overflade | Antiglare |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | Full color |
| responstid | 15/25 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/40/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S2PWLEDWithout Driver |
| signal interface | TFT Specific Analog RGB, 30 pins |
| indgangsspænding | 3.3/5.0/17.0/-12.0V (Typ.)(VDD1/VDD2/VGH/VGL) |
| Ansøgning | DVC |
| A035VL01 V6 | AUO | 3.5 | 800×480 |
| ACX565AKM-7 | SONY | 3.5 | 800×480 |
| AM-320240LATNQW-T00H-F | AMPIRE | 3.5 | 320×240 |
| DLC0350BMG-1 | Other | 3.5 | 240×320 |
| LH350WS1-SH02 | LG Display | 3.5 | 640×960 |
| PW035XS1 | E Ink | 3.5 | 320×234 |
| PW035XU1 | E Ink | 3.5 | 320×234 |
| PW036XS3 | E Ink | 3.6 | 320×234 |
| TM035KDH03-79 | Tianma | 3.5 | 320×240 |
| TM035KDH08 | Tianma | 3.5 | 320×240 |
| 990000553 | TPO | 3.5 | 320×240 |
| A035CN02 V1 | AUO | 3.5 | 480×234 |
| A035VL01 V0 | AUO | 3.5 | 800×480 |
| A035VL01 V3 | AUO | 3.5 | 800×480 |
| COM48T4Mxxxxx | ORTUSTECH | 4.8 | 1920×1080 |
| LS032V8DY01 | SHARP | 3.2 | 640×480 |
| LTV280QV-F02 | Samsung | 2.8 | 320×240 |
| PD035QX2 | E Ink | 3.5 | 320×240 |
| PW035XU1 | E Ink | 3.5 | 320×234 |
