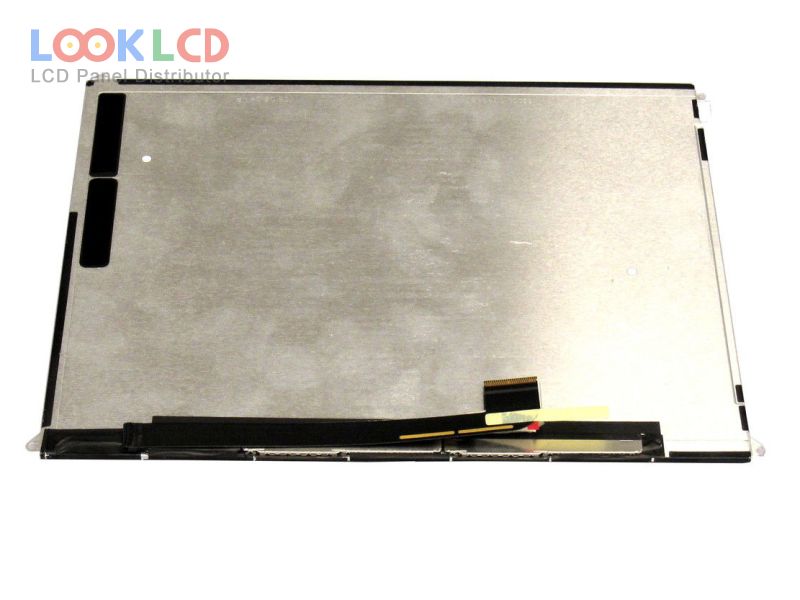

| Varenummer | LP097QX1-SPA1 |
| Mærke | LG Display |
| Størrelse | 9.7 |
| Ansøgning | PAD |
| Løsning | 2048×1536 |
| Sammensætning | LCM |
| Lysstyrke | 440 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| panel mærke | LG Display |
| panel model | LP097QX1-SPA1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 9.7 inch |
| løsning | 2048(RGB)×1536 , QXGA |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 196.608×147.456 mm |
| omrids | 208.88×167.12×5.17 mm |
| overflade | Glare (Haze 0%), Hard coating (3H), Antireflection |
| lysstyrke | 440 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 16 (Typ.)(G to G) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 7S6P×2CNWLEDWithout Driver |
| signal interface | eDP (4 Lanes), 51 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PAD |
| LP097QX1-SPA1 | LG Display | 9.7 | 2048×1536 |
| LP097QX1-SPA2 | LG Display | 9.7 | 2048×1536 |
| LP097QX1-SPAV | LG Display | 9.7 | 2048×1536 |
| LP097QX1-SPC1 | LG Display | 9.7 | 2048×1536 |
| LP097QX1-SPC2 | LG Display | 9.7 | 2048×1536 |
| LP097QX1-SPC3 | LG Display | 9.7 | 2048×1536 |
| LP097QX2-SPAV | LG Display | 9.7 | 1536×2048 |
| LP097QX3-SPAV | LG Display | 9.7 | 1536×2048 |
| LP097X02-SLA3 | LG Display | 9.7 | 1024×768 |
| LQ097L1JY02Z | SHARP | 9.7 | 2048×1536 |
| B101EVT03.1 | AUO | 10.1 | 1280×800 |
| EJ101IA-01C | Innolux | 10.1 | 1280×800 |
| HJ070IA-04K | Innolux | 7.0 | 800×1280 |
| HV101WU1-1E3 | HYDIS | 10.1 | 1920×1200 |
| HV121WX6-111 | HYDIS | 12.1 | 1280×800 |
| HX104X02-100 | HYDIS | 10.4 | 1024×768 |
| LTL075PL01-001 | Samsung | 7.5 | 1050×1400 |
| N101ICG-L21 Rev.C2 | Innolux | 10.1 | 1280×800 |
| Q101IRE-GB1 | Innolux | 10.1 | 1280×800 |
| VVX10F011B00 | Panasonic | 10.1 | 1920×1200 |
