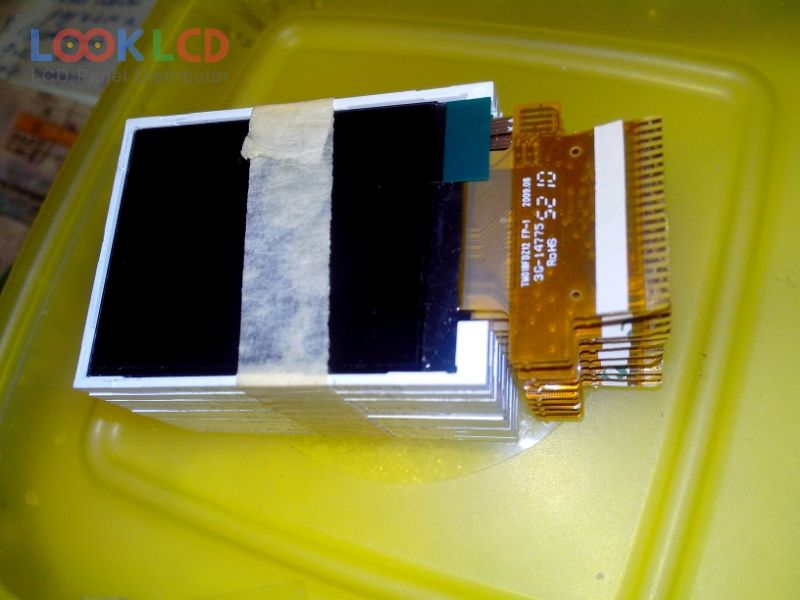

| Varenummer | TM018FDZ12 |
| Mærke | Tianma |
| Størrelse | 1.8 |
| Ansøgning | MPH |
| Løsning | 128×160 |
| Sammensætning | LCM |
| Lysstyrke | 190 |
| CR | 350:1 |
| Farver | 65K/262K |
| Baggrundsbelysning | WLED |
| Interface | CPU |
| panel mærke | TIANMA |
| panel model | TM018FDZ12 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 1.8 inch |
| løsning | 128(RGB)×160 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 28.032×35.04 mm |
| omrids | 34.7×45.83×2.85 mm |
| overflade | |
| lysstyrke | 190 cd/m² (Min.) |
| kontrastforhold | 350:1 (Typ.) |
| vise farver | 65K/262K , CIE193154% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 1S2PWLEDWithout Driver |
| signal interface | CPU, 20 pins |
| indgangsspænding | 2.8/2.8V (Typ.)(VDDI/VDD) |
| Ansøgning | MPH |
