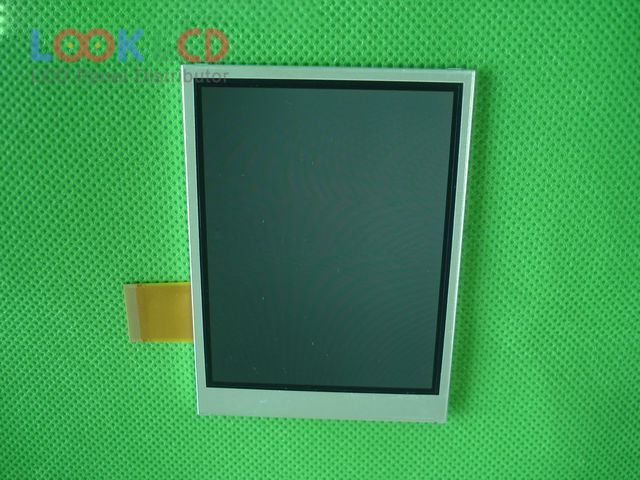

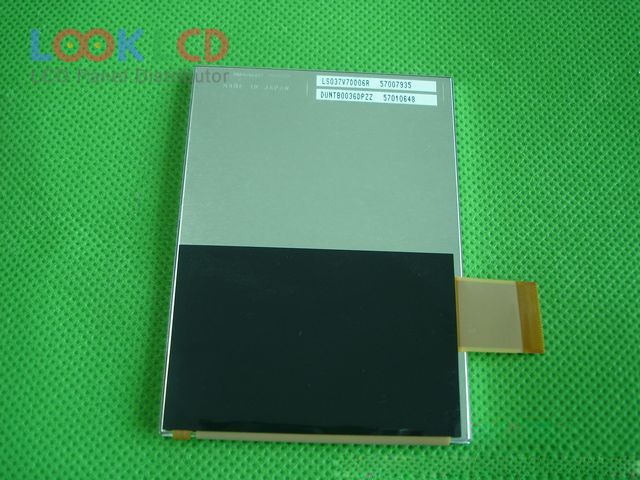

| Varenummer | LS037V7DD06R |
| Mærke | SHARP |
| Størrelse | 3.7 |
| Ansøgning | MPH |
| Løsning | 480×640 |
| Sammensætning | LCM |
| Lysstyrke | 100 |
| CR | 100:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LS037V7DD06R |
| paneltype | CG-Silicon , LCM |
| panelstørrelse | 3.7 inch |
| løsning | 480(RGB)×640 , VGA |
| visningstilstand | TN, Normally White, Transflective |
| aktivt område | 56.16×74.88 mm |
| omrids | 65×90 mm |
| overflade | |
| lysstyrke | 100 cd/m² (Typ.) |
| kontrastforhold | 100:1 (Typ.)(Transmissive)5:1 (Typ.)(Reflective) |
| vise farver | 262K (6-bit) |
| responstid | 30/50 (Typ.)(Tr/Td) |
| synsvinkel | 40/40/40/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 51 pins |
| indgangsspænding | 5.0/3.3/8.0/-4.0/-8.0V (Typ.)(VSHA/VSHD/VDD/VSSD/GVSS) |
| Ansøgning | MPH |
| LS037V3DX01 | SHARP | 3.7 | 640×480 |
| LS037V3DX02 | SHARP | 3.7 | |
| LS037V7DD05 | SHARP | 3.7 | 480×640 |
| LS037V7DD06 | SHARP | 3.7 | 480×640 |
| LS037V7DD06R | SHARP | 3.7 | 480×640 |
| LS037V7DW02 | SHARP | 3.7 | 480×640 |
| LS037V7DW03 | SHARP | 3.7 | 480×640 |
| LS037V7DW03A | SHARP | 3.7 | 480×640 |
| LS037V7DW03B | SHARP | 3.7 | 480×640 |
| LS037V7DW06 | SHARP | 3.7 | 480×640 |
| AMS427GL34-1 | Samsung | 4.3 | 480×800 |
| DLC0350TZG | Other | 3.5 | 240×320 |
| ET028002DMU | EDT | 2.8 | 240×320 |
| LH500X01-SD01 | LG Display | 5.0 | 768×1024 |
| LS026B8PX04 | SHARP | 2.6 | 240×400 |
| LT032MDQ7000 | JDI | 3.2 | 360×480 |
| LT043MDY5000 | TOSHIBA | 4.3 | 720×1280 |
| OEL9M0039-R-E | Other | 1.5 | 128×128 |
| TM020GDZ25 | Tianma | 2.0 | 176×220 |
| TM024HBZ26 | Tianma | 2.4 | 240×320 |
