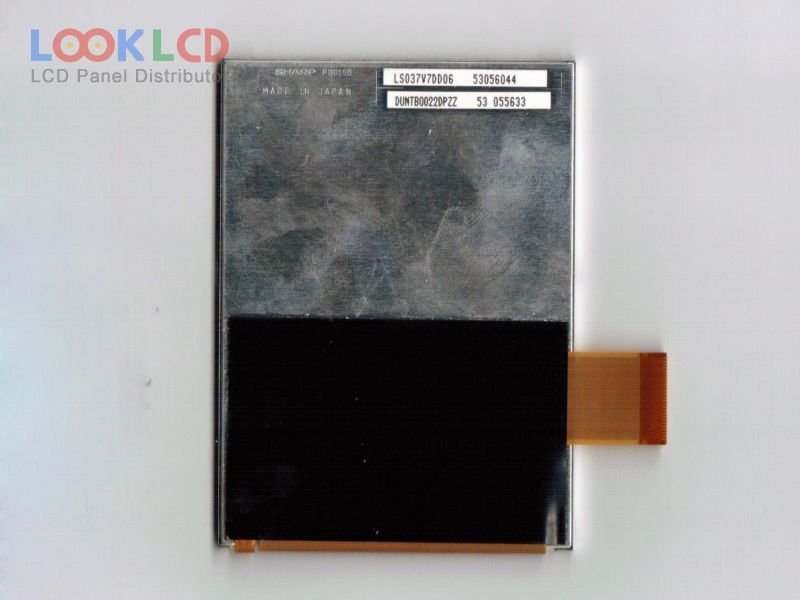

| Varenummer | LS037V7DD06 |
| Mærke | SHARP |
| Størrelse | 3.7 |
| Ansøgning | MPH |
| Løsning | 480×640 |
| Sammensætning | LCM |
| Lysstyrke | 100 |
| CR | 100:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LS037V7DD06 |
| paneltype | CG-Silicon , LCM |
| panelstørrelse | 3.7 inch |
| løsning | 480(RGB)×640 , VGA |
| visningstilstand | TN, Normally White, Transflective |
| aktivt område | 56.16×74.88 mm |
| omrids | 65×90 mm |
| overflade | |
| lysstyrke | 100 cd/m² (Typ.) |
| kontrastforhold | 100:1 (Typ.)(Transmissive)5:1 (Typ.)(Reflective) |
| vise farver | 262K (6-bit) |
| responstid | 30/50 (Typ.)(Tr/Td) |
| synsvinkel | 40/40/40/40 (Typ.)(CR≥2)(L/R/U/D) |
| lampe type | WLED |
| signal interface | Parallel RGB (1 ch, 6-bit), 51 pins |
| indgangsspænding | 5.0/3.3/8.0/-4.0/-8.0V (Typ.)(VSHA/VSHD/VDD/VSSD/GVSS) |
| Ansøgning | MPH |
| LS037V3DX01 | SHARP | 3.7 | 640×480 |
| LS037V3DX02 | SHARP | 3.7 | |
| LS037V7DD05 | SHARP | 3.7 | 480×640 |
| LS037V7DD06 | SHARP | 3.7 | 480×640 |
| LS037V7DD06R | SHARP | 3.7 | 480×640 |
| LS037V7DW02 | SHARP | 3.7 | 480×640 |
| LS037V7DW03 | SHARP | 3.7 | 480×640 |
| LS037V7DW03A | SHARP | 3.7 | 480×640 |
| LS037V7DW03B | SHARP | 3.7 | 480×640 |
| LS037V7DW06 | SHARP | 3.7 | 480×640 |
| AMFN888 | Samsung | 3.1 | 480×800 |
| CM546B1-002 | CSOT | 5.5 | 1080×1920 |
| H546DAN01.2 | AUO | 5.5 | 1080×1920 |
| H598QAN01.0 | AUO | 6.0 | 1440×2560 |
| LH320WV3-SH02 | LG Display | 3.2 | 480×800 |
| LS020B8UD02 | SHARP | 2.0 | 176×220 |
| LS043K1SX02 | SHARP | 4.3 | 720×1280 |
| LTJ035L001A | TPO | 3.5 | 640×360 |
| TM028HDH21 | Tianma | 2.8 | 240×320 |
| TM032PDZ13 | Tianma | 3.2 | 320×480 |
