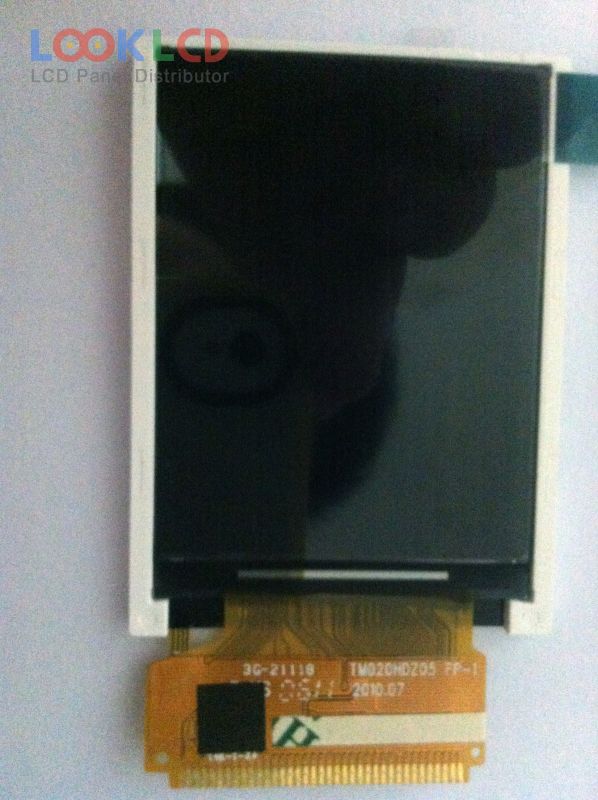

| Varenummer | TM020HDZ05 |
| Mærke | Tianma |
| Størrelse | 2.0 |
| Ansøgning | MPH |
| Løsning | 240×320 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 350:1 |
| Farver | 65K/262K |
| Baggrundsbelysning | WLED |
| Interface | CPU |
| panel mærke | TIANMA |
| panel model | TM020HDZ05 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 2.0 inch |
| løsning | 240(RGB)×320 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 30.24×40.32 mm |
| omrids | 38.08×51.3 mm |
| overflade | |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 350:1 (Typ.) |
| vise farver | 65K/262K , CIE193150% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 50/50/20/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1S3PWLEDWithout Driver |
| signal interface | CPU, 36 pins |
| indgangsspænding | 1.8/2.8V (Typ.)(VDD/VDDIO) |
| Ansøgning | MPH |
