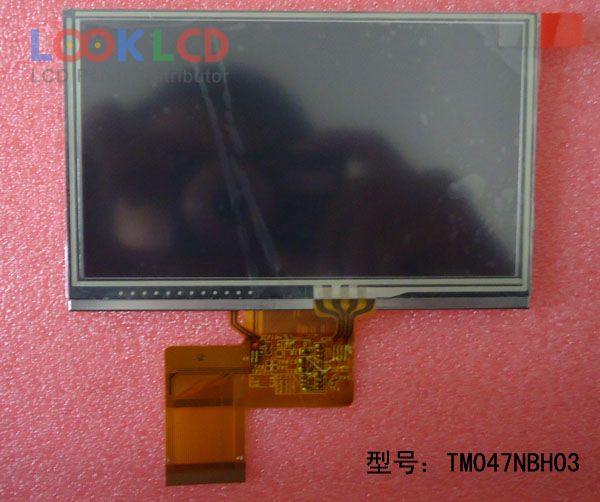

| Varenummer | TM047NBH03 |
| Mærke | Tianma |
| Størrelse | 4.7 |
| Ansøgning | HHP |
| Løsning | 480×272 |
| Sammensætning | LCM |
| Lysstyrke | 280 |
| CR | 500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | TIANMA |
| panel model | TM047NBH03 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 4.7 inch |
| løsning | 480(RGB)×272 , WQVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 103.68×58.752 mm |
| omrids | 114.3×72.5 mm |
| overflade | Clear, Hard coating (3H) |
| lysstyrke | 280 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193150% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 5S2PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | HHP |
