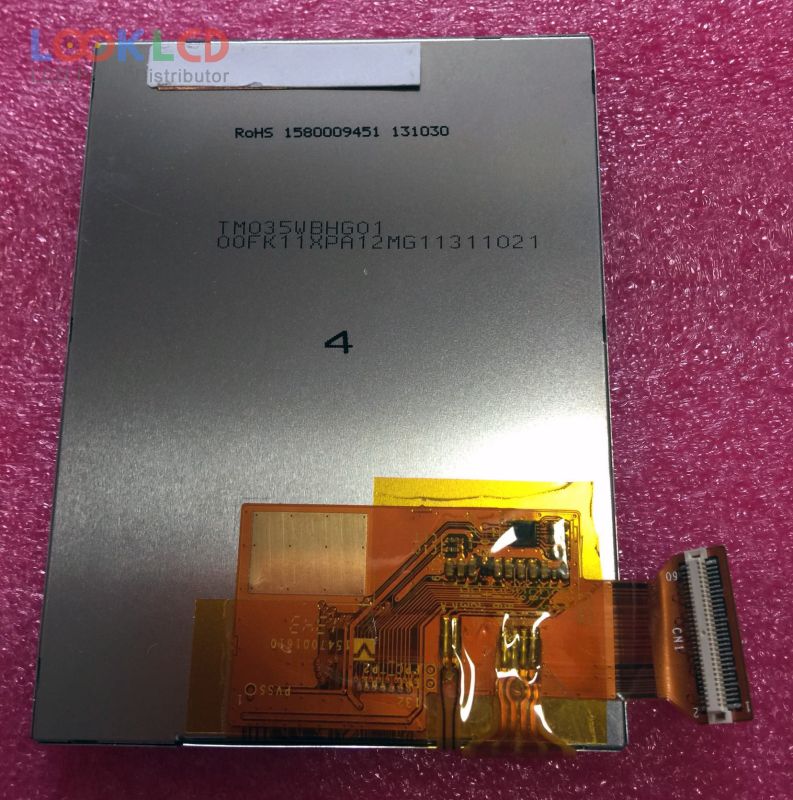

| Varenummer | TM035WBHG01 |
| Mærke | Tianma |
| Størrelse | 3.5 |
| Ansøgning | HHP |
| Løsning | 480×640 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | TIANMA |
| panel model | TM035WBHG01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 480(RGB)×640 , VGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 53.28×71.04 mm |
| omrids | 64×85×4.63 mm |
| overflade | Antiglare |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 60/70/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 6S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 60 pins |
| indgangsspænding | 2.8V (Typ.) |
| Ansøgning | HHP |
