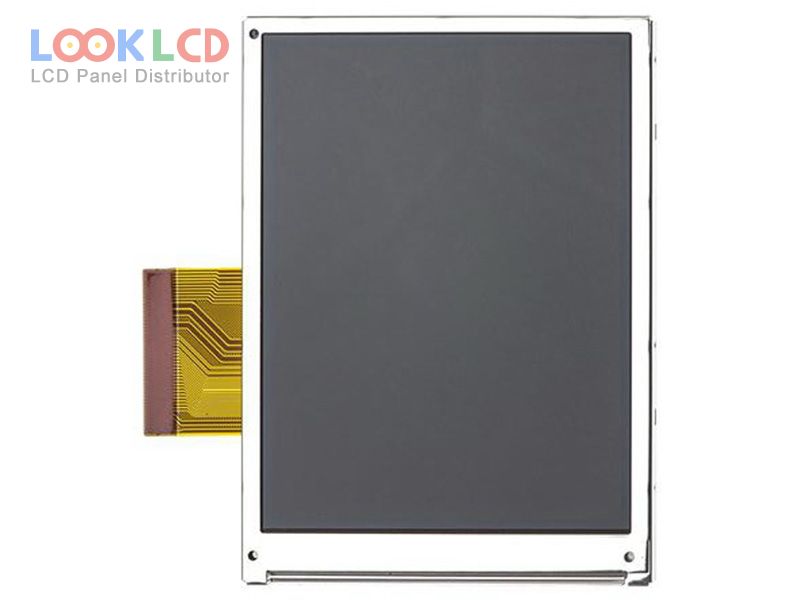

| Varenummer | TX09D40VM3CBA |
| Mærke | KOE |
| Størrelse | 3.5 |
| Ansøgning | HHP |
| Løsning | 240×320 |
| Sammensætning | LCM |
| Lysstyrke | 430 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | HITACHI |
| panel model | TX09D40VM3CBA |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 240(RGB)×320 , QVGA |
| visningstilstand | TN, Normally White, TMR |
| aktivt område | 53.64×71.52 mm |
| omrids | 64×86×4.5 mm |
| overflade | |
| lysstyrke | 430 cd/m² (Typ.) |
| kontrastforhold | 300 : 1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 80/50/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S2PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 50 pins |
| indgangsspænding | 3.0/8.45/16.5/-8.05V (Typ.)(VCC/VDH/VGH/VGL) |
| Ansøgning | HHP |
| 35HVE0H | SII | 3.5 | 320×480 |
| AMS347FF02 | Samsung | 3.5 | 360×640 |
| DLC0350CZG-T-2 | Other | 3.5 | 320×240 |
| GCX123AKQ-E | JDI | 3.5 | 240×320 |
| NL2432HC22-41B | NLT | 3.5 | 240×320 |
| NL2432HC22-50B | NLT | 3.5 | 240×320 |
| PD035QX2 | E Ink | 3.5 | 320×240 |
| TX09D23VM1CAA | KOE | 3.5 | 240×320 |
| TX09D40VM3CBA | KOE | 3.5 | 240×320 |
| UMSH-8065MD-11T | Other | 3.5 | 320×240 |
| 20QVF1H | SII | 2.0 | 240×320 |
| 28QVF1J | SII | 2.8 | 240×320 |
| AM-320240-015A | Other | 1.5 | 320×240 |
| LQ038Q7DB03 | SHARP | 3.8 | 240×320 |
| LQ039Q2DS51 | SHARP | 3.9 | 320×240 |
| LQ043T1DG03B | SHARP | 4.3 | 480×272 |
| LS027B7DH01 | SHARP | 2.7 | 400×240 |
| TM035HDHT1 | Tianma | 3.5 | 240×320 |
| TM035WBHG01 | Tianma | 3.5 | 480×640 |
| TX09D200VM0BAA | KOE | 3.5 | 240×320 |
