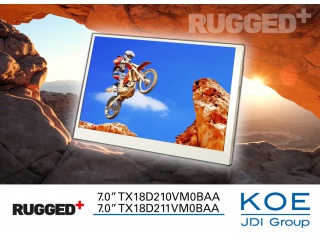

| Varenummer | TX18D210VM0BAA |
| Mærke | KOE |
| Størrelse | 7.0 |
| Ansøgning | Industrial Outdoor H |
| Løsning | 800×480 |
| Sammensætning | LCM , LTPS TFT-LCD |
| Lysstyrke | |
| CR | 1200:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | Parallel |
| fabrikant | KOE |
| skærmstørrelse | 7.0 inch |
| pixel antal | 800(RGB)×480 (WVGA) 133PPI |
| aktivt område (mm) | 152.4 × 91.44 (H×V) |
| rammeareal (mm) | 156.2 × 94.5 (H×V) |
| luminans | 800 cd/m² (Typ.) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10) |
| god udsigt kl | Symmetry |
| farvedybde | 262K 72% NTSC |
| masse | 214g (Typ.) |
| opdateringshastighed | 60Hz |
| signaltype | Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
| spændingsforsyning | 3.3V (Typ.) |
| max. vurderinger | Storage Temp.: -40 ~ 90 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 5.0G (49.0 m/s²) |
| modelnavn | TX18D210VM0BAA |
| skærmtype | LCM , LTPS TFT-LCD |
| arrangement | RGB Vertical Stripe |
| omrids (mm) | 167.7 × 109.5 × 20.3 (H×V×D) |
| behandling | - |
| kontrastforhold | 1200 : 1 (Typ.) (TM) |
| respons | 30 (Typ.)(Tr+Td) ms |
| arbejdstilstand | IPS, Normally Black, Transmissive |
| baggrundsbelysning | WLED , 50K hours , With LED Driver |
| anvendes til | Industrial Outdoor High Brightness Automotive Display |
| berøringsskærm | Without |
