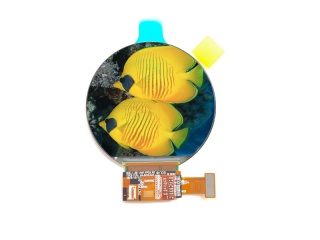

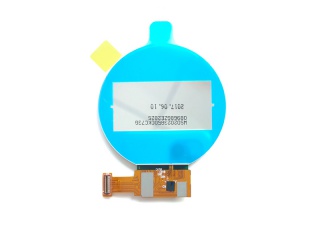

| Varenummer | WS020ZVM-N30-6KP0 |
| Mærke | BOE |
| Størrelse | 2.0 |
| Ansøgning | Wearable Round Displ |
| Løsning | 640×572 |
| Sammensætning | LTPS TFT-LCD, LCM |
| Lysstyrke | |
| CR | 1500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| mærke | BOE |
| model | WS020ZVM-N30-6KP0 |
| diagonal størrelse | 2.0 inch |
| type | LTPS TFT-LCD, LCM |
| pixel format | 640(RGB)×572 327PPI |
| konfiguration | RGB Vertical Stripe |
| aktivt område | 49.728(H)×44.364(V) mm |
| omrids dim. | 52.1(H)×49.8(V) mm |
| luminans | 450 cd/m² (Typ.) |
| kontrastforhold | 1500:1 (Typ.) (TM) |
| visningsretning | Symmetry |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10) |
| driftstilstand | ADS, Normally Black, Transmissive |
| støtte farve | 16.7M 70% NTSC |
| lyskilde | WLED [4S1P] , W/O Driver |
| vægt | - |
| designet til | Wearable Round Display |
| billedhastighed | 60Hz |
| berøringspanel | PCAP |
| interface type | MIPI (1 data lane) , 30 pins Connector |
| Strømforsyning | 1.8/5.0/-5.0V (Typ.)(IOVCC/VSP/VSN) |
| miljø | Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| 20QVF0H | SII | 2.0 | 240×320 |
| AM-320240-020A | Other | 2.0 | 320×240 |
| DLC0200EUG | Other | 2.0 | 240×320 |
| LS020B8UD02 | SHARP | 2.0 | 176×220 |
| LTM020A52A | TOSHIBA | 2.0 | 240×320 |
| LTS200QC-F0V | Samsung | 2.0 | 176×220 |
| OEL9M0064-R-E | Other | 2.0 | 128×32 |
| TD020THEG1 | TPO | 2.0 | 640×240 |
| TM020HBH03 | Tianma | 2.0 | 240×320 |
| TM020HDZ05 | Tianma | 2.0 | 240×320 |
