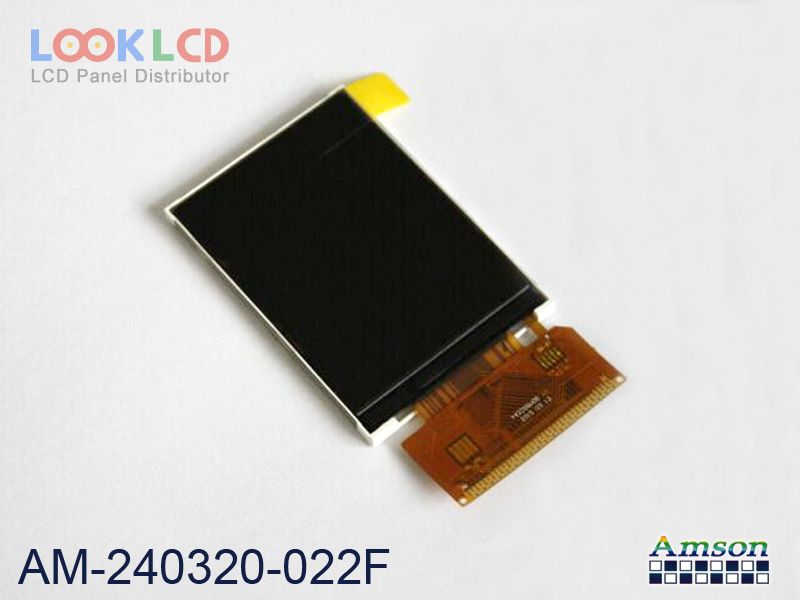

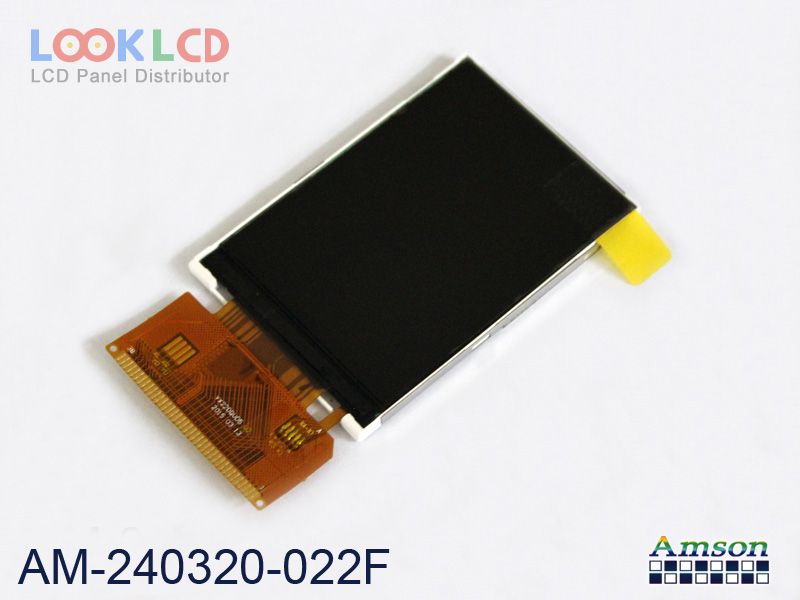

| Varenummer | AM-240320-022F |
| Mærke | Other |
| Størrelse | 2.2 |
| Ansøgning | HHP |
| Løsning | 240×320 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | CPU |
| panel mærke | Amson |
| panel model | AM-240320-022F |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 2.2 inch |
| løsning | 240(RGB)×320 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 33.48×44.64 mm |
| omrids | 38.38×59.19×2.6 mm |
| overflade | |
| lysstyrke | |
| kontrastforhold | |
| vise farver | 262K |
| responstid | |
| synsvinkel | |
| lampe type | 4 stringsWLEDWithout Driver |
| signal interface | 8/16-bit 8080 parallel, 38 pins |
| indgangsspænding | 2.8/2.8V (Typ.)(IOVCC/VCI) |
| Ansøgning | HHP |
| AM-240320-022F | Other | 2.2 | 240×320 |
| AM-240320-024DT | Other | 2.4 | 240×320 |
| COM22H2P16ULC | ORTUSTECH | 2.2 | 240×320 |
| CT022TN15 | Innolux | 2.2 | 176×220 |
| LTS220QC-F0J | Samsung | 2.2 | 176×220 |
| TM022GBH01 | Tianma | 2.2 | 176×220 |
| TM022HDH31 | Tianma | 2.2 | 240×320 |
| TM022HDHT1-05 | Tianma | 2.2 | 240×320 |
| TX06D15VM1EAA | KOE | 2.2 | 176×220 |
| 24QVF1J | SII | 2.4 | 240×320 |
| 35HVE1H | SII | 3.5 | 320×480 |
| COM32H3N74ULC | ORTUSTECH | 3.2 | 480×800 |
| G043FTT01.0 | AUO | 4.3 | 480×272 |
| G050VVN01.0 | AUO | 5.0 | 480×800 |
| LQ043T1DG03 | SHARP | 4.3 | 480×272 |
| S035V01 | CDTECH | 3.5 | 480×640 |
| TFTMD030035 | JDI | 3.0 | 640×480 |
| TM030ZDHG01 | Tianma | 3.0 | 320×320 |
| TX09D30VM1CCA | KOE | 3.5 | 240×320 |
