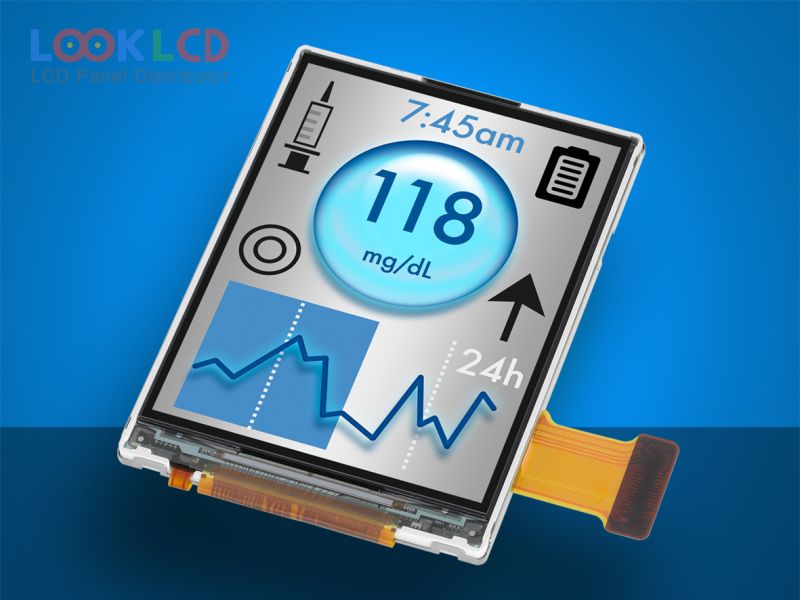

| Varenummer | COM22H2P16ULC |
| Mærke | ORTUSTECH |
| Størrelse | 2.2 |
| Ansøgning | HHP |
| Løsning | 240×320 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 800:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | CPU |
| panel mærke | ORTUSTECH |
| panel model | COM22H2P16ULC |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 2.2 inch |
| løsning | 240(RGB)×320 , QVGA |
| visningstilstand | Buenaview, Normally Black, Transflective |
| aktivt område | 33.84×45.12 mm |
| omrids | 38.64×53.72×3.55 mm |
| overflade | Hard coating (3H) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.)(Transmissive)4:1 (Typ.)(Reflective) |
| vise farver | 262K (6-bit), CIE193135% |
| responstid | 60/40 (Max.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 3S1PWLEDWithout Driver |
| signal interface | CPU, 40 pins |
| indgangsspænding | 2.8/2.8V (Typ.)(IOVCC/VCI) |
| Ansøgning | HHP |
