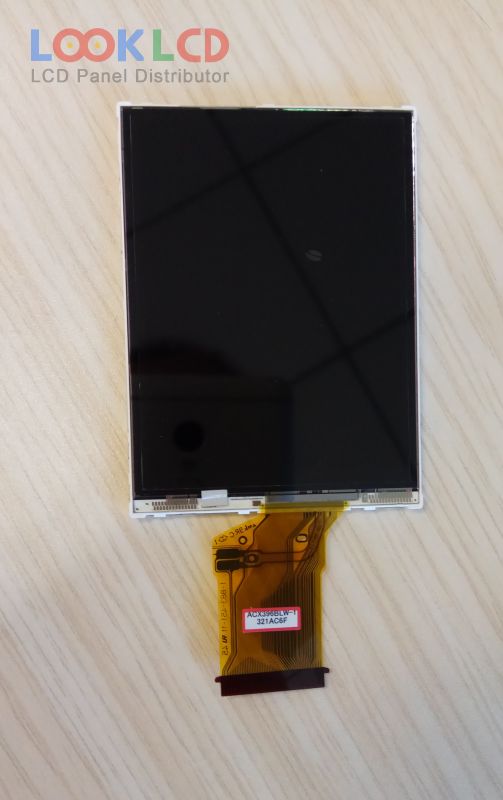

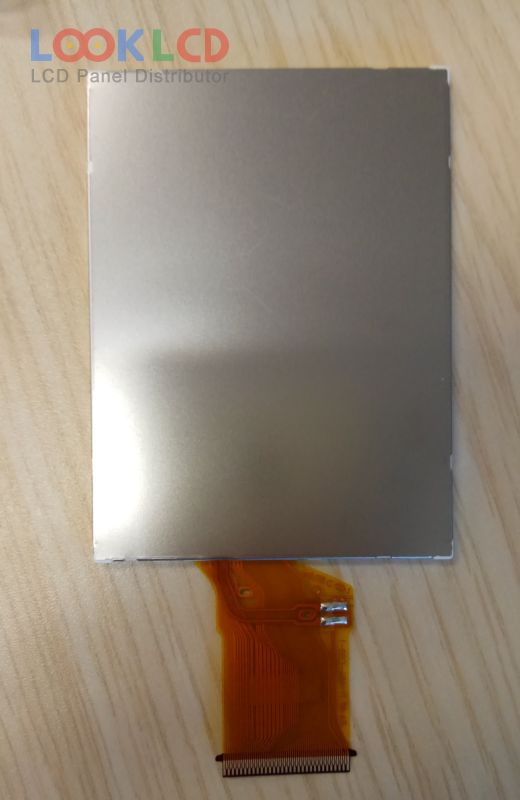

| Varenummer | TFTMD030035 |
| Mærke | JDI |
| Størrelse | 3.0 |
| Ansøgning | HHP |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 410 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | JDI |
| panel model | TFTMD030035 |
| paneltype | LTPS TFT-LCD , LCM |
| panelstørrelse | 3.0 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 60×45 mm |
| omrids | 70.7×52×2.75 mm |
| overflade | Hard coating |
| lysstyrke | 410 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193184% |
| responstid | 20/20 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥100)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit) + SPI, 60 pins |
| indgangsspænding | (1.8/3.0)/3.0V (Typ.)(VDDIO/VDD) |
| Ansøgning | HHP |
| C-51505NFJ-SLG-AHN | Kyocera | 3.0 | 20×2 |
| C-51505NFJ-SLW-AIN | Kyocera | 3.0 | 20×2 |
| DX08D11VM0AAA | KOE | 3.0 | 480×800 |
| LH300Q01-ED01 | LG Display | 3.0 | 320×240 |
| LS030Q7DH01 | SHARP | 3.0 | 240×320 |
| LS030Y7PW01 | SHARP | 3.0 | |
| TFTMD030011 | JDI | 3.0 | 720×480 |
| TFTMD030035 | JDI | 3.0 | 640×480 |
| TFTMD070021 | JDI | 7.0 | 1200×1920 |
| TFTMD089030 | JDI | 8.9 | 2560×1600 |
| 28QVF1H | SII | 2.8 | 240×320 |
| 35HVE1H | SII | 3.5 | 320×480 |
| AM-320240LATNQW-00H-F | AMPIRE | 3.5 | 320×240 |
| COM35H3P09UTC | ORTUSTECH | 3.5 | 480×640 |
| COM40T4M46ULX | ORTUSTECH | 4.0 | 480×800 |
| G043FTT01.0 | AUO | 4.3 | 480×272 |
| LS024Q3UX12(G) | SHARP | 2.4 | 320×240 |
| LS027B7DH01 | SHARP | 2.7 | 400×240 |
| TM030LDHT1 | Tianma | 3.0 | 240×400 |
| TX09D70VM1CEA | KOE | 3.5 | 240×320 |
