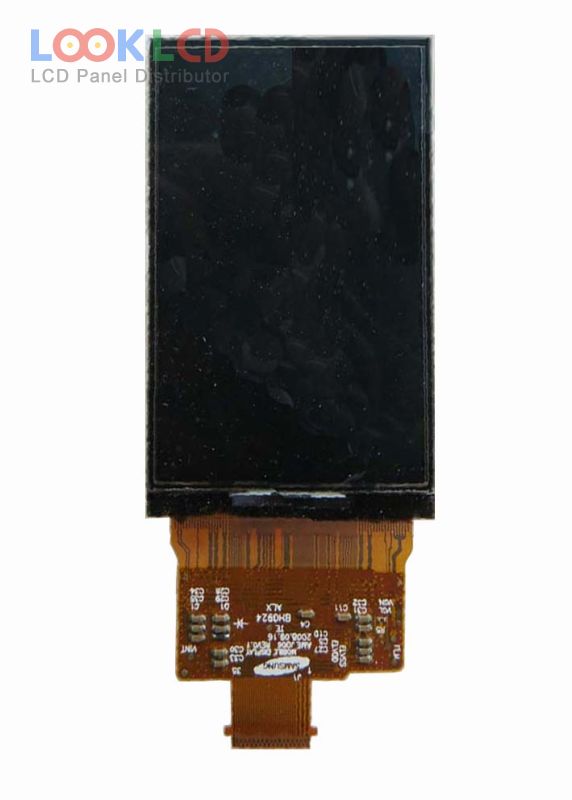

| Varenummer | AMEJ006 |
| Mærke | Samsung |
| Størrelse | 2.8 |
| Ansøgning | MPH |
| Løsning | 240×400 |
| Sammensætning | OLED |
| Lysstyrke | 200 |
| CR | 2000:1 |
| Farver | 262K |
| Baggrundsbelysning | self |
| Interface | CPU |
| panel mærke | SAMSUNG |
| panel model | AMEJ006 |
| paneltype | AM-OLED , OLED |
| panelstørrelse | 2.8 inch |
| løsning | 240(RGB)×400 , WQVGA |
| aktivt område | 36.72×61.2 mm |
| omrids | 40.72×69.56×1.2 mm |
| overflade | Glare (Haze 0%), Hard coating |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 2000 : 1 (Typ.) |
| vise farver | 262K (6-bit), CIE1931106% |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥200)(L/R/U/D) |
| frekvens | 60Hz |
| driver ic | Built-in D53E4EA7554 |
| signal interface | CPU, 35 pins |
| indgangsspænding | 2.8/2.8/3.8V (Typ.)(VDD2/VCI/Vbat) |
| Ansøgning | MPH |
