| Varenummer | TM020GDZ25 |
| Mærke | Tianma |
| Størrelse | 2.0 |
| Ansøgning | MPH |
| Løsning | 176×220 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | |
| panel mærke | TIANMA |

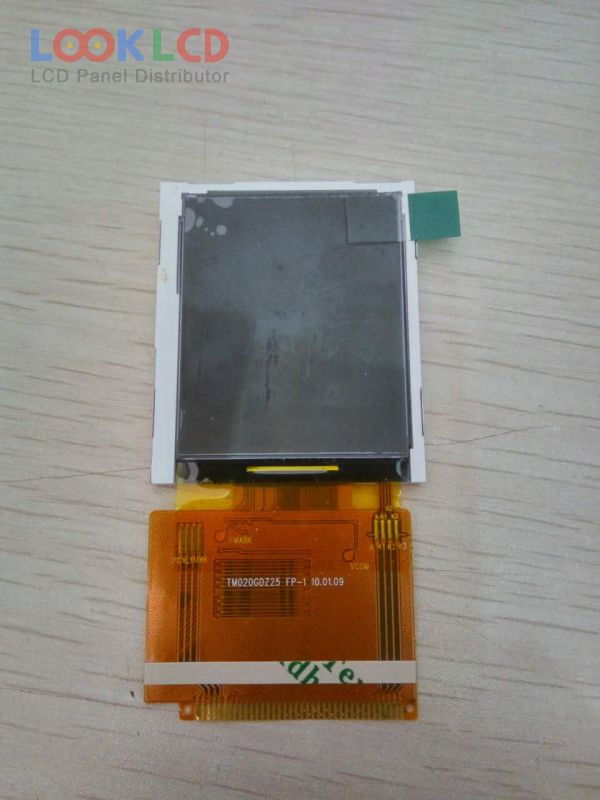

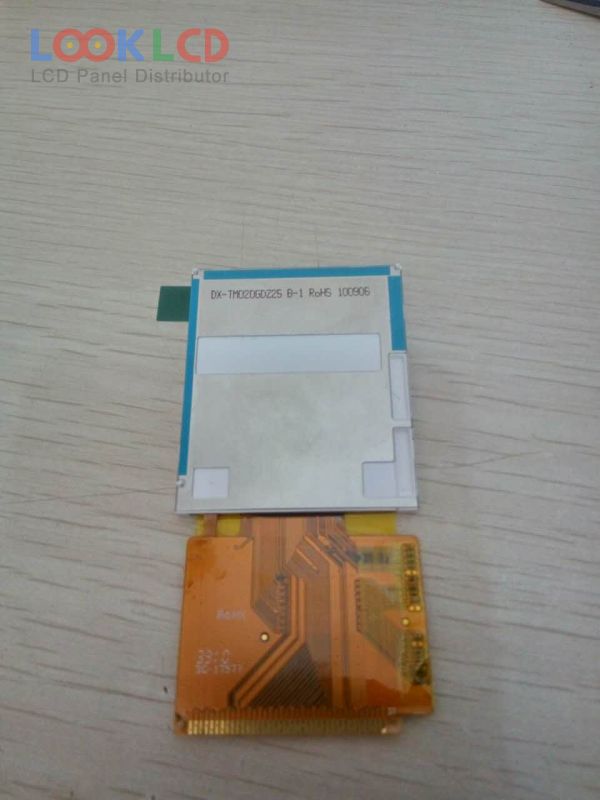

| panel model | TM020GDZ25 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 2.0 inch |
| løsning | 176(RGB)×220 , QCIF+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 31.68×39.6 mm |
| overflade | |
| lysstyrke | |
| kontrastforhold | |
| vise farver | 262K , CIE193140% |
| responstid | 30/30 (Typ.)(Tr/Td) |
| synsvinkel | 50/50/25/50 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | WLED |
| Ansøgning | MPH |
| A020BL01 V0 | AUO | 2.0 | 640×240 |
| AM-320240-020A | Other | 2.0 | 320×240 |
| LB020Q01-A1 | LG Display | 2.0 | 320×240 |
| LTS200QC-F0V | Samsung | 2.0 | 176×220 |
| OEL9M0064-G-E | Other | 2.0 | 128×32 |
| OEL9M0064-W-E | Other | 2.0 | 128×32 |
| TM020GDH42 | Tianma | 2.0 | 176×220 |
| TM020GDZ25 | Tianma | 2.0 | 176×220 |
| TM020HBH03 | Tianma | 2.0 | 240×320 |
| TM020HDZ05 | Tianma | 2.0 | 240×320 |
| ACX465AKM-7 | JDI | 5.9 | 1080×1920 |
| AMS300FW01-0 | Samsung | 3.0 | 240×400 |
| AMS529HA01 | Samsung | 5.3 | 800×1280 |
| H335VVN01.0 | AUO | 3.4 | 480×854 |
| LH430WV1-SD01 | LG Display | 4.3 | 480×800 |
| LMS316CC01 | Samsung | 3.2 | 640×360 |
| LQ024B7UD01 | SHARP | 2.4 | 160×240 |
| LS028B7UX01 | SHARP | 2.8 | 240×400 |
| LS038Y3LX01 | SHARP | 3.8 | 480×800 |
| TM050JVZG28 | Tianma | 5.0 | 720×1280 |
