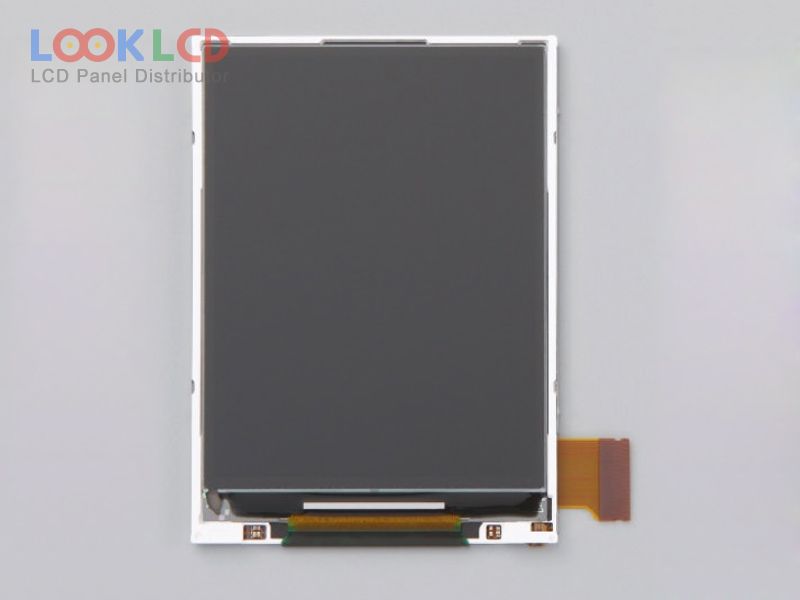

| Varenummer | 28QVF2H |
| Mærke | SII |
| Størrelse | 2.8 |
| Ansøgning | HHP |
| Løsning | 240×320 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 800:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SII |
| panel model | 28QVF2H |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 2.8 inch |
| løsning | 240(RGB)×320 , QVGA |
| visningstilstand | FFS, Normally Black, Transmissive |
| aktivt område | 43.2×57.6 mm |
| omrids | 49×69 mm |
| overflade | Clear, Hard coating |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193172% |
| responstid | 35 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 4S1PWLED |
| signal interface | Parallel RGB (1 ch, 6-bit) + SPI, 35 pins |
| indgangsspænding | (1.65~3.3)/(2.5~3.3)(IOVCC/VCI) |
| Ansøgning | HHP |
| 28QVF1H | SII | 2.8 | 240×320 |
| 28QVF1J | SII | 2.8 | 240×320 |
| 28QVF2H | SII | 2.8 | 240×320 |
| 28QVF2J | SII | 2.8 | 240×320 |
| LTP280QV-E01 | Samsung | 2.8 | 240×320 |
| LTP283QV-F03 | Samsung | 2.8 | 240×320 |
| PJ028MA-01A | Innolux | 2.8 | 240×320 |
| TM028HBHG02 | Tianma | 2.8 | 240×320 |
| TM028HDH21 | Tianma | 2.8 | 240×320 |
| UG-5664ALBDF01 | WiseChip | 2.8 | 256×64 |
| 20QVF0H | SII | 2.0 | 240×320 |
| 24QVF1J | SII | 2.4 | 240×320 |
| COM40T4M46ULX | ORTUSTECH | 4.0 | 480×800 |
| DLC0240ACOG-3 | Other | 2.4 | 240×320 |
| G043FTT01.0 | AUO | 4.3 | 480×272 |
| LQ038Q7DB03R | SHARP | 3.8 | 240×320 |
| PD035VX8 | E Ink | 3.5 | 480×640 |
| TM035HDHT1 | Tianma | 3.5 | 240×320 |
| TM035NDH04 | Tianma | 3.5 | 272×480 |
| TX09D40VM3CBA | KOE | 3.5 | 240×320 |
