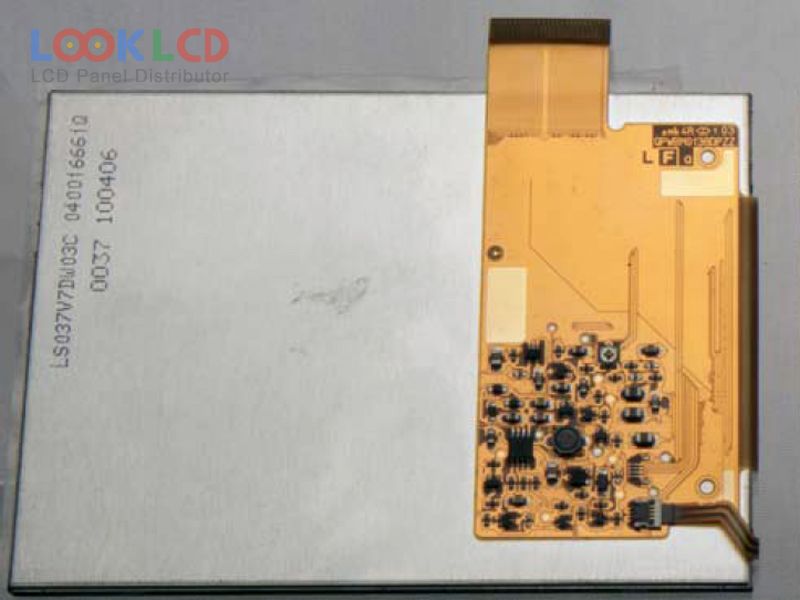

| Varenummer | LS037V7DW03 |
| Mærke | SHARP |
| Størrelse | 3.7 |
| Ansøgning | HHP |
| Løsning | 480×640 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 200:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LS037V7DW03 2 Compatible model |
| paneltype | CG-Silicon , LCM |
| panelstørrelse | 3.7 inch |
| løsning | 480(RGB)×640 , VGA |
| visningstilstand | ASV, Normally Black, Transflective |
| aktivt område | 56.16×74.88 mm |
| omrids | 65×89.2 mm |
| overflade | |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 200:1 (Typ.)(Transmissive)2:1 (Typ.)(Reflective) |
| vise farver | 262K (6-bit), CIE193135% |
| responstid | 15/20 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| lampe type | 7S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 51 pins |
| indgangsspænding | 3.3V (Typ.)(VSHD) |
| Ansøgning | HHP |
