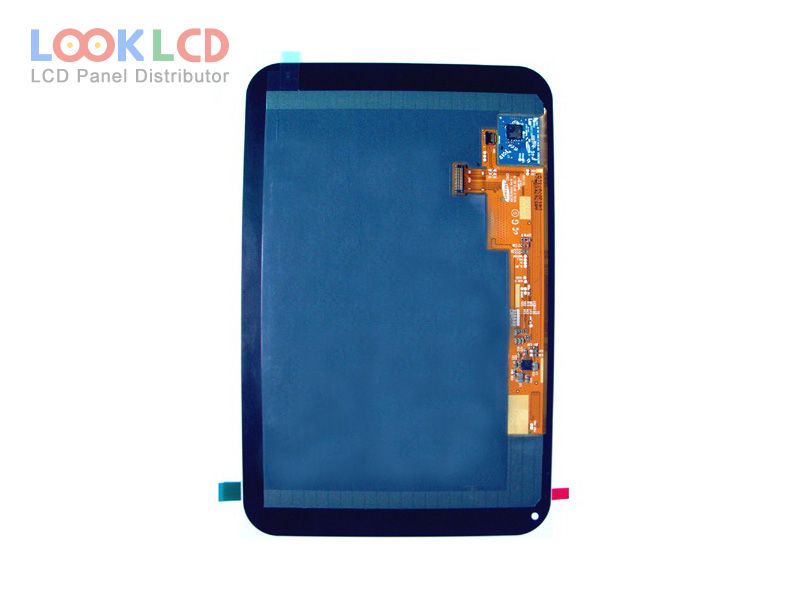

| Varenummer | AMS767KC04-1 |
| Mærke | Samsung |
| Størrelse | 7.7 |
| Ansøgning | PAD |
| Løsning | 1280×800 |
| Sammensætning | Assembly |
| Lysstyrke | 250 |
| CR | 3400:1 |
| Farver | 16.7M |
| Baggrundsbelysning | self |
| Interface | MIPI |
| panel mærke | SAMSUNG |
| panel model | AMS767KC04-1 |
| paneltype | AM-OLED , Assembly |
| panelstørrelse | 7.7 inch |
| løsning | 1280(RGB)×800 , WXGA |
| aktivt område | 165.12×103.2 mm |
| omrids | 197.7×128.4 mm |
| overflade | Anti Fingerprint |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 3400 : 1 (Min.) |
| vise farver | 16.7M (8-bit), CIE1931110% |
| synsvinkel | 88/88/88/88 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| signal interface | MIPI (4 data lanes), 44 pins |
| indgangsspænding | 6.3/1.8/3.0/5.8V (VDCDC/VDD3/VCI/VLIN1) |
| Ansøgning | PAD |
