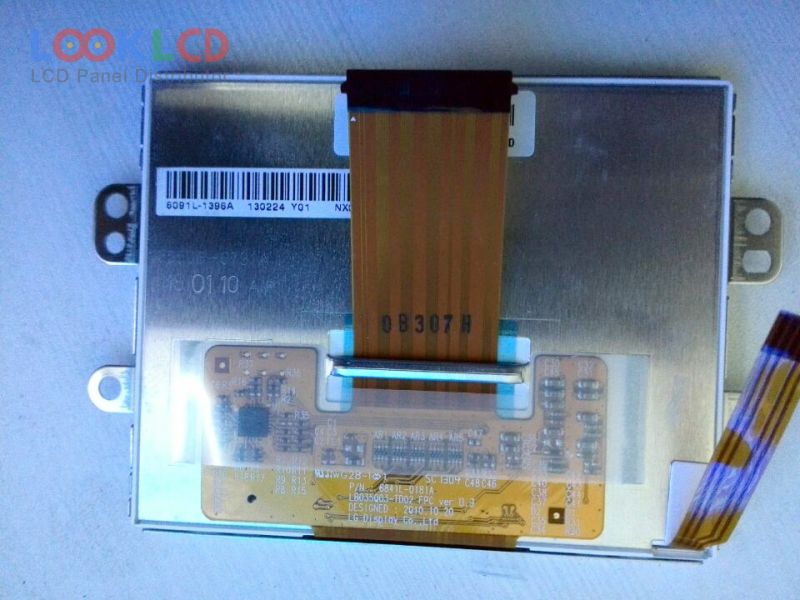

| Varenummer | LB035Q03-TD02 |
| Mærke | LG Display |
| Størrelse | 3.5 |
| Ansøgning | CNS |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 625 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | LG Display |
| panel model | LB035Q03-TD02 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 70.08×52.56 mm |
| omrids | 84×67×9.9 mm |
| overflade | Antiglare |
| lysstyrke | 625 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 7/18 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/60/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 5S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | CNS |
| 990000738A | Innolux | 3.5 | 320×240 |
| DLC0350CZG-T | Other | 3.5 | 320×240 |
| EL160.80.50 IN | Lumineq | 3.5 | 160×80 |
| GCX123AKQ-E | JDI | 3.5 | 240×320 |
| LB035Q01-TJ01 | LG Display | 3.5 | 320×240 |
| LB035Q02-TD01 | LG Display | 3.5 | 320×240 |
| LB035Q03-TD02 | LG Display | 3.5 | 320×240 |
| LB035Q04-TD08 | LG Display | 3.5 | 320×240 |
| PJ035MA-02A | Innolux | 3.5 | 320×480 |
| TD035STED7 | TPO | 3.5 | 240×320 |
| AM-800480-050D | Other | 5.0 | 800×480 |
| AM-800480R3TMQW-B2H | AMPIRE | 7.0 | 800×480 |
| C043FW01 V0 | AUO | 4.3 | 480×234 |
| LB070WV3-SD02 | LG Display | 7.0 | 800×480 |
| LB070WV7-TL01 | LG Display | 7.0 | 800×480 |
| LQ038Q5DR01 | SHARP | 3.8 | 320×240 |
| LQ5AW136R | SHARP | 5.0 | 320×234 |
| LQ6BW558T | SHARP | 5.8 | 480×234 |
| PM070WU1 | E Ink | 7.0 | 800×480 |
| TFD65W30 | TOSHIBA | 6.5 | 400×234 |
