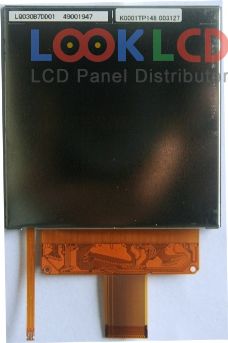

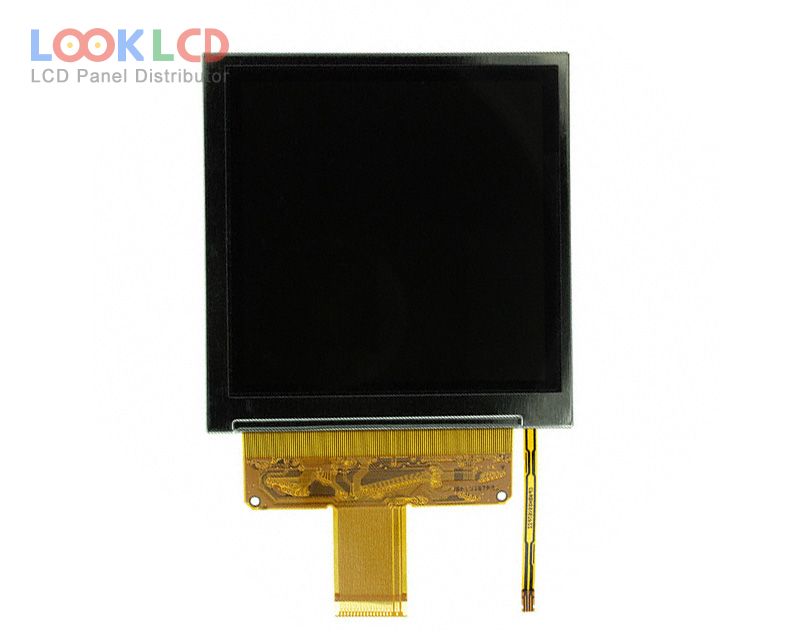

| Varenummer | LQ030B7DD01 |
| Mærke | SHARP |
| Størrelse | 3.0 |
| Ansøgning | HHP |
| Løsning | 320×320 |
| Sammensætning | LCM |
| Lysstyrke | 110 |
| CR | 70:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ030B7DD01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.0 inch |
| løsning | 320(RGB)×320 |
| visningstilstand | TN, Normally White, Transflective |
| aktivt område | 53.76×53.76 mm |
| omrids | 66.6×68.5 mm |
| overflade | Clear, Hard coating |
| lysstyrke | 110 cd/m² (Typ.) |
| kontrastforhold | 70:1 (Typ.)(Transmissive)5:1 (Typ.)(Reflective) |
| vise farver | 262K (6-bit) |
| responstid | 30/50 (Typ.)(Tr/Td) |
| synsvinkel | 40/40/40/50 (Typ.)(CR≥2)(L/R/U/D) |
| lampe type | 5S1PWLED |
| signal interface | Parallel RGB (1 ch, 6-bit), 39 pins |
| indgangsspænding | 5.0/3.3/15/-10V (Typ.)(VSHA/VSHD/VDD/VEE) |
| Ansøgning | HHP |
