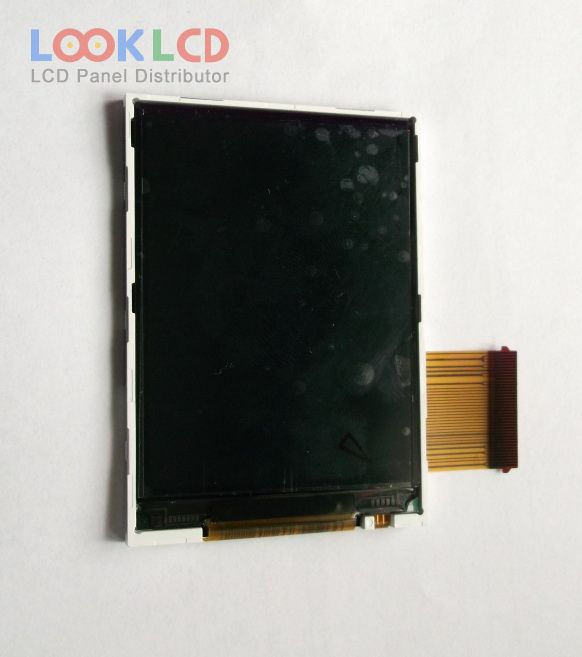

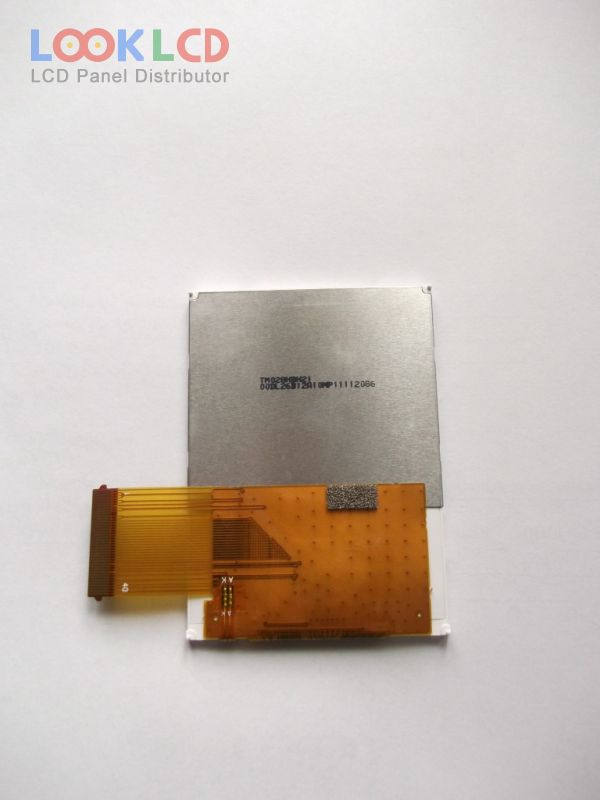

| Varenummer | TM028HDH21 |
| Mærke | Tianma |
| Størrelse | 2.8 |
| Ansøgning | MPH |
| Løsning | 240×320 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | CPU |
| panel mærke | TIANMA |
| panel model | TM028HDH21 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 2.8 inch |
| løsning | 240(RGB)×320 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 43.2×57.6 mm |
| overflade | Clear |
| lysstyrke | |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 20 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDWithout Driver |
| signal interface | 8/16-bit 8080 parallel, 37 pins |
| indgangsspænding | 2.8/2.8V (Typ.)(IDDIO/VCC) |
| Ansøgning | MPH |
| BTL282440-310L | BOE | 2.8 | 240×400 |
| F-55472GNFJ-SLW-AAN | Kyocera | 2.8 | 128×64 |
| LS028B7UX01 | SHARP | 2.8 | 240×400 |
| LTP283QV-F03 | Samsung | 2.8 | 240×320 |
| LTV280QV-F02 | Samsung | 2.8 | 320×240 |
| PJ028MA-01A | Innolux | 2.8 | 240×320 |
| TM028HBHG02 | Tianma | 2.8 | 240×320 |
| TM028HDH21 | Tianma | 2.8 | 240×320 |
| TM028LDH01 | Tianma | 2.8 | 240×400 |
| TM028LDZ09 | Tianma | 2.8 | 240×400 |
| 43WVF2A | SII | 4.3 | 480×800 |
| ACX435AKN-7 | SONY | 4.5 | 800×1280 |
| ACX565AKM-7 | SONY | 3.5 | 800×480 |
| H598QAN01.0 | AUO | 6.0 | 1440×2560 |
| LH350WS1-SD01 | LG Display | 3.5 | 640×960 |
| LH550WF4-SJ11 | LG Display | 5.5 | 1080×1920 |
| LS030Q7DH01 | SHARP | 3.0 | 240×320 |
| LTM030DH60 | TOSHIBA | 3.0 | 240×427 |
| TM028HBHG02 | Tianma | 2.8 | 240×320 |
| TM047XDZP02 | Tianma | 4.7 | 540×960 |
