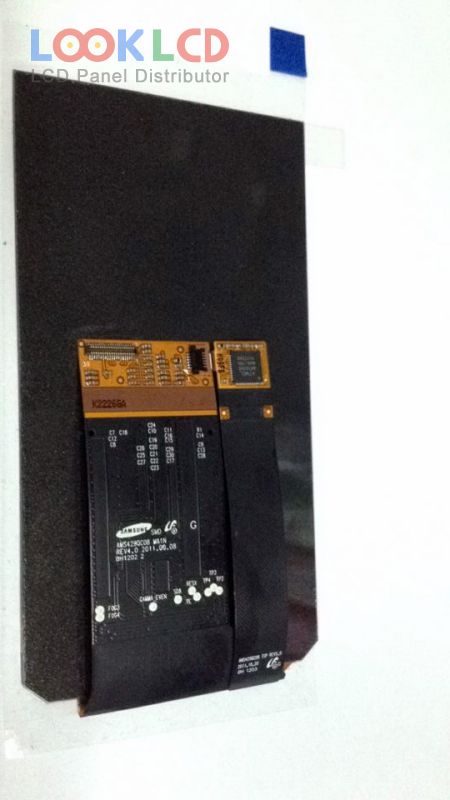

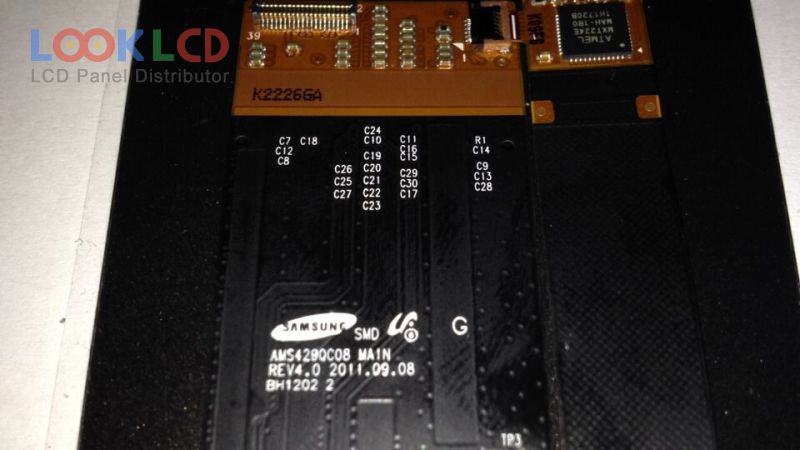

| Varenummer | AMS429QC08 |
| Mærke | Samsung |
| Størrelse | 4.3 |
| Ansøgning | MPH |
| Løsning | 540×960 |
| Sammensætning | OLED |
| Lysstyrke | 300 |
| CR | 10000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | self |
| Interface | MIPI |
| panel mærke | SAMSUNG SMD |
| panel model | AMS429QC08 |
| paneltype | AM-OLED , OLED |
| panelstørrelse | 4.3 inch |
| løsning | 540RG(BG)×960 , qHD |
| aktivt område | 53.46×95.04 mm |
| omrids | 60.46×119.1×4.24 mm |
| overflade | Hard coating |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 10000 : 1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE1931105% |
| synsvinkel | |
| frekvens | 60Hz |
| driver ic | Built-in S6E39A0 |
| signal interface | MIPI (2 data lanes), 40 pins |
| indgangsspænding | 1.8/3.0/3.8V (Typ.)(VDD/VCI/VBAT) |
| Ansøgning | MPH |
| AMS427GL34-1 | Samsung | 4.3 | 480×800 |
| AMS427GL45-0 | Samsung | 4.3 | 480×800 |
| AMS429QC08 | Samsung | 4.3 | 540×960 |
| DLC0430NZG-T-1 | Other | 4.3 | 480×272 |
| ED043CA-01D | Innolux | 4.3 | 480×272 |
| LB043WQ2-TD08 | LG Display | 4.3 | 480×272 |
| LH430WV1-SD02 | LG Display | 4.3 | 480×800 |
| LMS430HF11 | Samsung | 4.3 | 480×272 |
| TD043MTEA1 | TPO | 4.3 | 800×480 |
| AMCE002 | Samsung | 2.4 | 240×320 |
| AMS410GC01-0 | Samsung | 4.1 | 480×800 |
| DX12D100VM0EAA | JDI | 4.7 | 720×1280 |
| H020HD01 V0 | AUO | 2.0 | 176×220 |
| HSD015F4N2-B | HannStar | 1.5 | 128×128 |
| LH350H02-FD02 | LG Display | 3.5 | 320×480 |
| LH400WV3-SD02 | LG Display | 4.0 | 480×800 |
| LQ043Y1DX01 | SHARP | 4.3 | 480×800 |
| LS023B3UY01 | SHARP | 2.3 | 360×400 |
| LTM020A52A | TOSHIBA | 2.0 | 240×320 |
