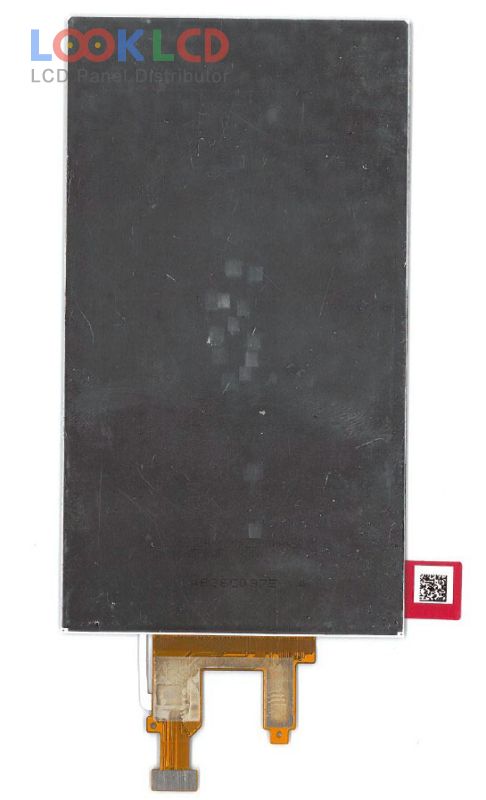

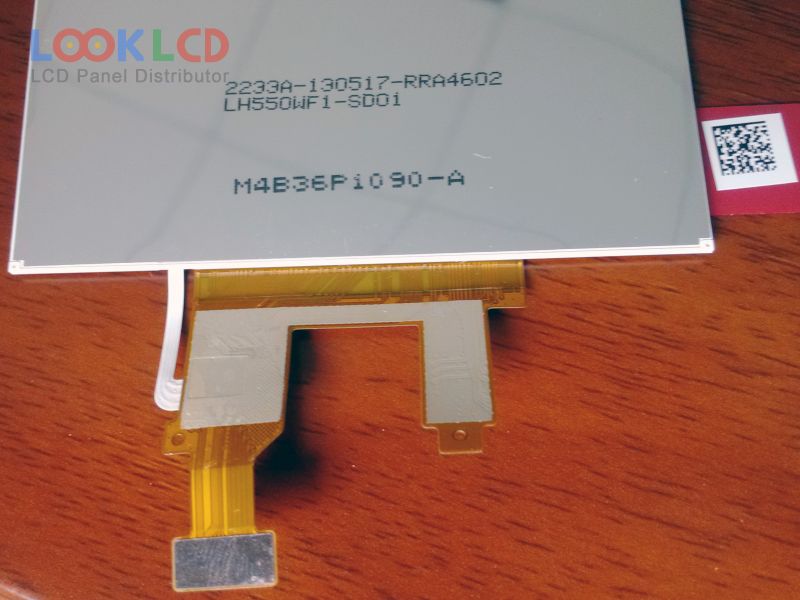

| Varenummer | LH550WF1-SD01 |
| Mærke | LG Display |
| Størrelse | 5.5 |
| Ansøgning | MPH |
| Løsning | 1080×1920 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| panel mærke | LG Display |
| panel model | LH550WF1-SD01 |
| paneltype | LTPS TFT-LCD , LCM |
| panelstørrelse | 5.5 inch |
| løsning | 1080(RGB)×1920 , FHD |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 68.04×120.96 mm |
| omrids | 71.14×128.01 mm |
| overflade | Antireflection |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193170% |
| responstid | 17/18 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S2PWLEDWithout Driver |
| signal interface | MIPI (4 data lanes), 30 pins |
| indgangsspænding | 1.8/5.0/-5.0V (Typ.)(IOVCC/VSP/VSN) |
| Ansøgning | MPH |
| CLAN055WA41 3XB | CPT | 5.5 | 720×1280 |
| LH550WF1-SD01 | LG Display | 5.5 | 1080×1920 |
| LH550WF2-SD01 | LG Display | 5.5 | 1080×1920 |
| LH550WF2-SD03 | LG Display | 5.5 | 1080×1920 |
| LH550WF4-SD01 | LG Display | 5.5 | 1080×1920 |
| LH550WF4-SJ11 | LG Display | 5.5 | 1080×1920 |
| LQ055K3SX02 | SHARP | 5.5 | 720×1280 |
| LS055T1SX01 | SHARP | 5.5 | 1080×1920 |
| LTA055B0R0A | TOSHIBA | 5.5 | 480×234 |
| PJ055IA-14C | Innolux | 5.5 | 1080×1920 |
| AMS300FW01-0 | Samsung | 3.0 | 240×400 |
| BS055FHE-N30-6Q00 | BOE | 5.5 | 1080×1920 |
| DX08D11VM0AAA | KOE | 3.0 | 480×800 |
| H429AL02.0 | AUO | 4.3 | 540×960 |
| LH350H02-FD02 | LG Display | 3.5 | 320×480 |
| LH400WS1-SD03 | LG Display | 4.0 | 640×1136 |
| LS028B8PX05 | SHARP | 2.8 | 240×400 |
| LS030Y7PW01 | SHARP | 3.0 | |
| TM040YDZ01 | Tianma | 4.0 | 480×800 |
| TM055JVZG02 | Tianma | 5.5 | 720×1280 |
