| Varenummer | LPM055A138A |
| Mærke | JDI |
| Størrelse | 5.5 |
| Ansøgning | MPH |
| Løsning | 1440×2560 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 950:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| panel mærke | JDI |
| panel model | LPM055A138A |
| paneltype | LTPS TFT-LCD , LCM |
| panelstørrelse | 5.5 inch |
| løsning | 1440(RGB)×2560 , Quad-HD |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 68.04×120.96 mm |
| omrids | 70.94×128.26×1.5 mm |
| overflade | Hard coating (3H) |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 950:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193170% |
| responstid | 20 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 7S2PWLEDWithout Driver |

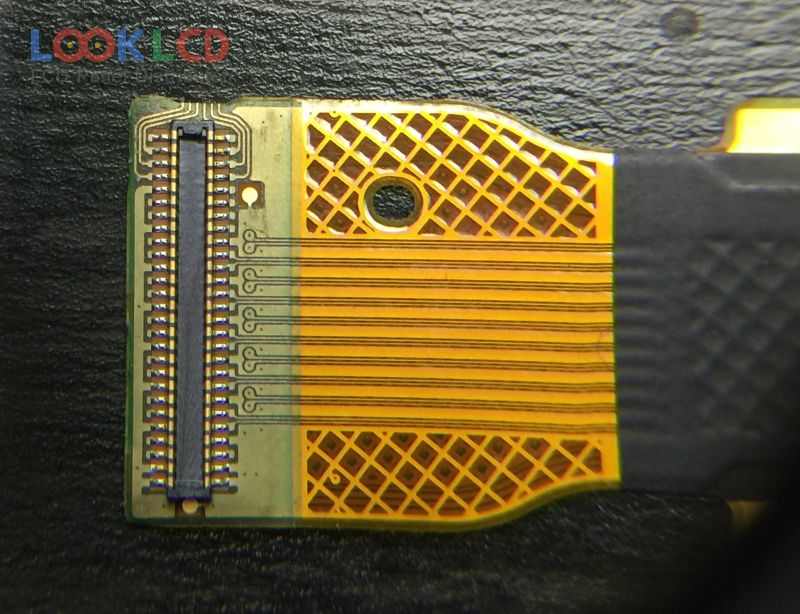

| signal interface | MIPI (2 ch, 4 data lanes), 50 pins |
| indgangsspænding | 1.8/5.0/-5.0V (Typ.)(VDDI/AVDD/AVEE) |
| Ansøgning | MPH |
| CLAF055WB41 TXX | CPT | 5.5 | 720×1280 |
| H546DLB01.1 | AUO | 5.5 | 1080×1920 |
| LPM055A138A | JDI | 5.5 | 1440×2560 |
| LQ055T3SX04 | SHARP | 5.5 | 1080×1920 |
| LS055R1SC01 | SHARP | 5.5 | 1440×2560 |
| NL3224AC35-10 | NLT | 5.5 | 320×240 |
| NL3224BC35-20R | NLT | 5.5 | 320×240 |
| TM055JDHP71 | Tianma | 5.5 | 720×1280 |
| TM055JVZG02 | Tianma | 5.5 | 720×1280 |
| AMS529BY01 | Samsung | 5.3 | 1080×1920 |
| BT043NHME601 | BOE | 4.3 | 360×600 |
| BT055FWM-N00 | BOE | 5.5 | 480×854 |
| CLAF055LA41 TXX | CPT | 5.5 | 540×960 |
| CT035TN02 | Innolux | 3.5 | 320×480 |
| DLC0220KZG | Other | 2.2 | 320×320 |
| LM18WGSBZ05 | SHARP | 1.8 | 120×160 |
| LS026Q3DX01 | SHARP | 2.6 | 240×320 |
| LS040B3SX01 | SHARP | 4.0 | 640×960 |
| TM022HDHT1-00 | Tianma | 2.2 | 240×320 |
