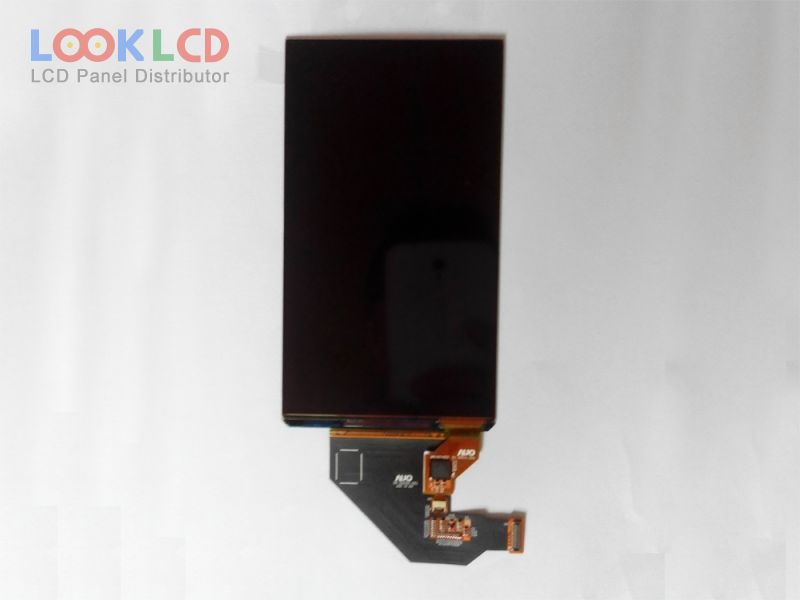

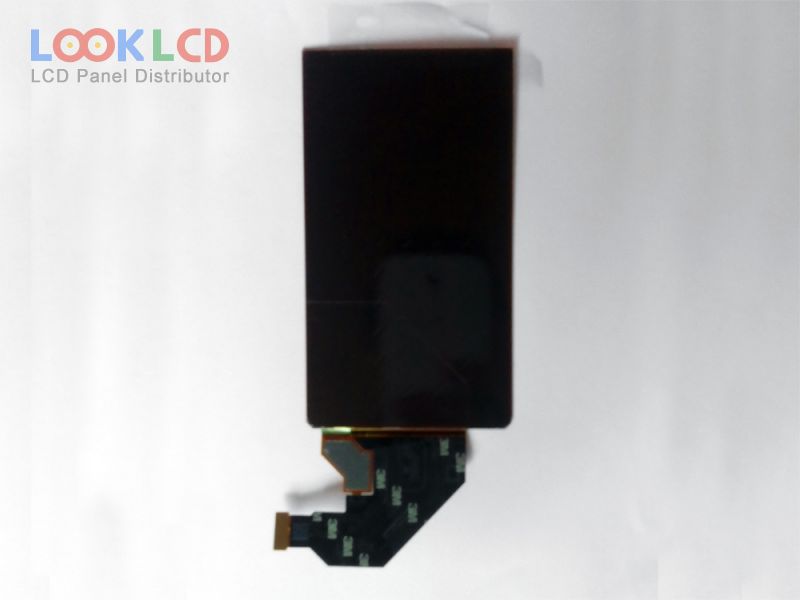

| Varenummer | H546DLB01.1 |
| Mærke | AUO |
| Størrelse | 5.5 |
| Ansøgning | MPH |
| Løsning | 1080×1920 |
| Sammensætning | OLED |
| Lysstyrke | 350 |
| CR | 10000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | self |
| Interface | MIPI |
| panel mærke | AUO |
| panel model | H546DLB01.1 |
| paneltype | AM-OLED , OLED |
| panelstørrelse | 5.5 inch |
| løsning | 1080(RGB)×1920 , FHD |
| aktivt område | 68.04×120.96 mm |
| omrids | 70.84×128.01 mm |
| overflade | Hard coating (3H) |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 10000 : 1 (Min.) |
| vise farver | 16.7M (8-bit), CIE1931103% |
| synsvinkel | 80/80/80/80 (Min.)(CR≥1600)(L/R/U/D) |
| driver ic | COG Built-in RM69070 |
| signal interface | MIPI (2 data lanes), 40 pins |
| indgangsspænding | 1.8/3.0/4.6/7.6V (Typ.)(IOVCC/VCI/OVDD/AVDD) |
| Ansøgning | MPH |
