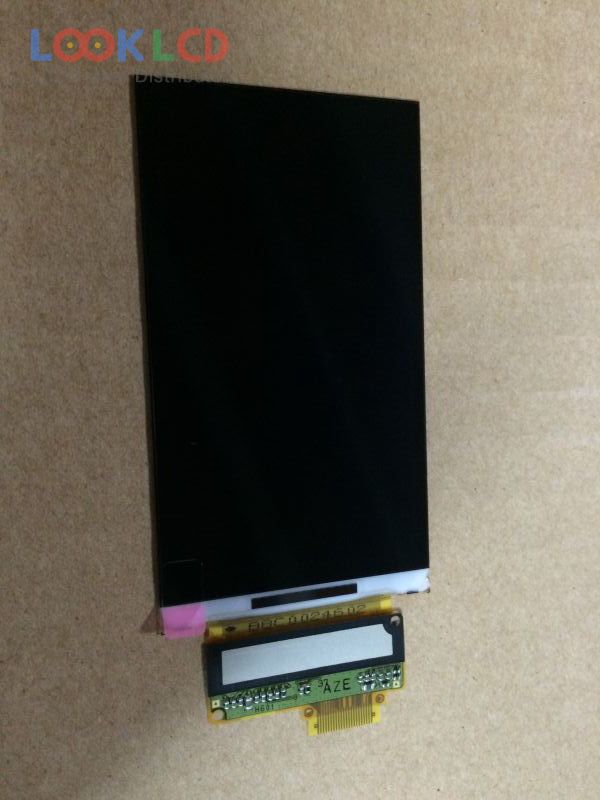

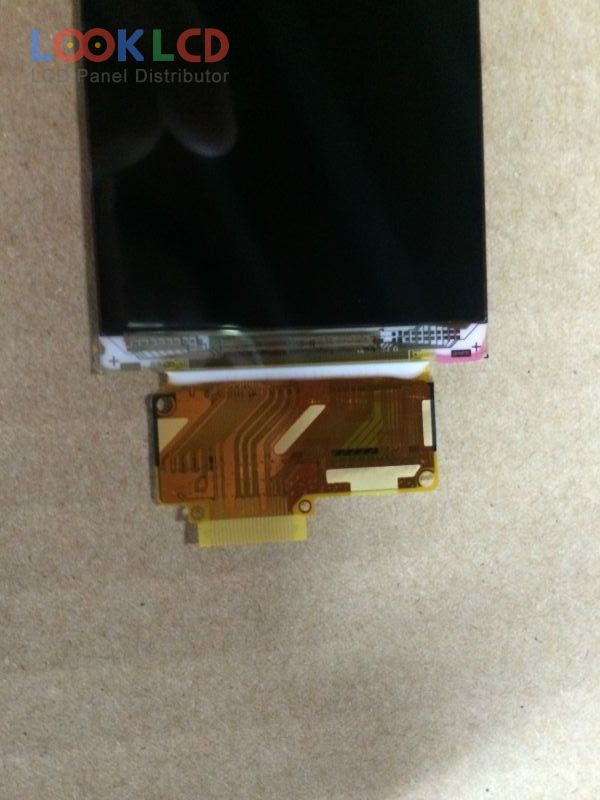

| Varenummer | LTM030DH60 |
| Mærke | TOSHIBA |
| Størrelse | 3.0 |
| Ansøgning | MPH |
| Løsning | 240×427 |
| Sammensætning | CELL |
| Lysstyrke | 0 |
| CR | 800:1 |
| Farver | 262K |
| Baggrundsbelysning | No B/L |
| Interface | M-CMADS |
| panel mærke | TOSHIBA |
| panel model | LTM030DH60 |
| paneltype | LTPS TFT-LCD , CELL |
| panelstørrelse | 3.0 inch |
| løsning | 240(RGB)×427 |
| visningstilstand | TN, Normally White, Transflective |
| aktivt område | 36.72×65.33 mm |
| omrids | 40.52×72.63 mm |
| overflade | |
| glas dybde | 0.10+0.20 mm |
| transmissivitet | 5.4% (Typ.)(with Polarizer) |
| kontrastforhold | 800:1 (Typ.)(Transmissive)4:1 (Typ.)(Reflective) |
| vise farver | 262K , CIE193164% |
| responstid | 45/45 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/70/70 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| signal interface | M-CMADS + SPI, 22 pins |
| indgangsspænding | 2.8/1.8V (Typ.)(VCC/VDDIO) |
| Ansøgning | MPH |
