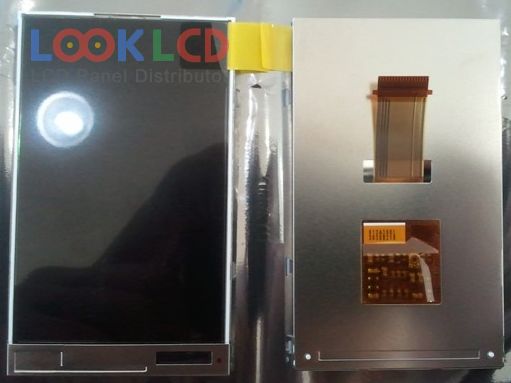

| Varenummer | TX08D13VM0AAA |
| Mærke | KOE |
| Størrelse | 3.0 |
| Ansøgning | MPH |
| Løsning | 240×400 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 300:1 |
| Farver | 65K/262K |
| Baggrundsbelysning | WLED |
| Interface | CPU |
| panel mærke | HITACHI |
| panel model | TX08D13VM0AAA |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.0 inch |
| løsning | 240(RGB)×400 , WQVGA |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 38.88×64.8 mm |
| omrids | 45.6×76 mm |
| overflade | |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 65K/262K , CIE193160% |
| responstid | 35 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 1S4PWLEDWithout Driver |
| signal interface | CPU, 35 pins |
| indgangsspænding | 2.8/2.8V (Typ.)(VCi/IOVCC) |
| Ansøgning | MPH |
| 990000006 | TPO | 3.0 | 320×240 |
| A030DN04 V0 | AUO | 3.0 | 320×240 |
| A030FL01 V2 | AUO | 3.0 | 480×272 |
| C-51505NFJ-SLG-AHN | Kyocera | 3.0 | 20×2 |
| DLC0300AMG | Other | 3.0 | 240×400 |
| LH300Q01-ED01 | LG Display | 3.0 | 320×240 |
| LQ030B7DD01 | SHARP | 3.0 | 320×320 |
| LS030Y3DX01 | SHARP | 3.0 | 480×800 |
| LS030Y7PW01 | SHARP | 3.0 | |
| TX08D13VM0AAA | KOE | 3.0 | 240×400 |
| AMDM001 | Samsung | 2.6 | 240×400 |
| AMS369FG06-0 | Samsung | 3.7 | 480×800 |
| BV055FHM-N00 | BOE | 5.5 | 1080×1920 |
| H380VW01 V2 | AUO | 3.8 | 480×800 |
| HJ050NA-01I | Innolux | 5.0 | 800×480 |
| LMS220GF08 | Samsung | 2.2 | 240×320 |
| LS030Q7DH01 | SHARP | 3.0 | 240×320 |
| LS035Y8DX04A | SHARP | 3.5 | 480×800 |
| PJ050IA-14A | Innolux | 5.0 | 720×1280 |
| TM030LBHT1 | Tianma | 3.0 | 240×400 |
