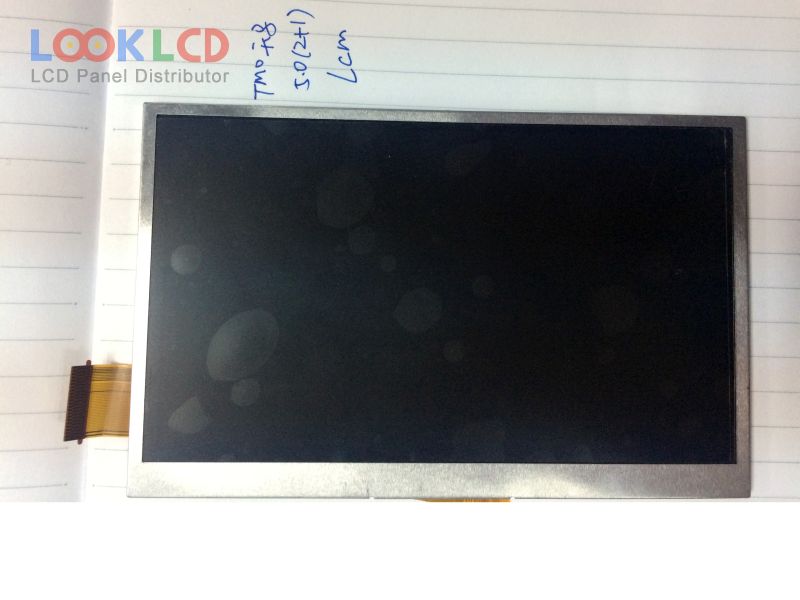

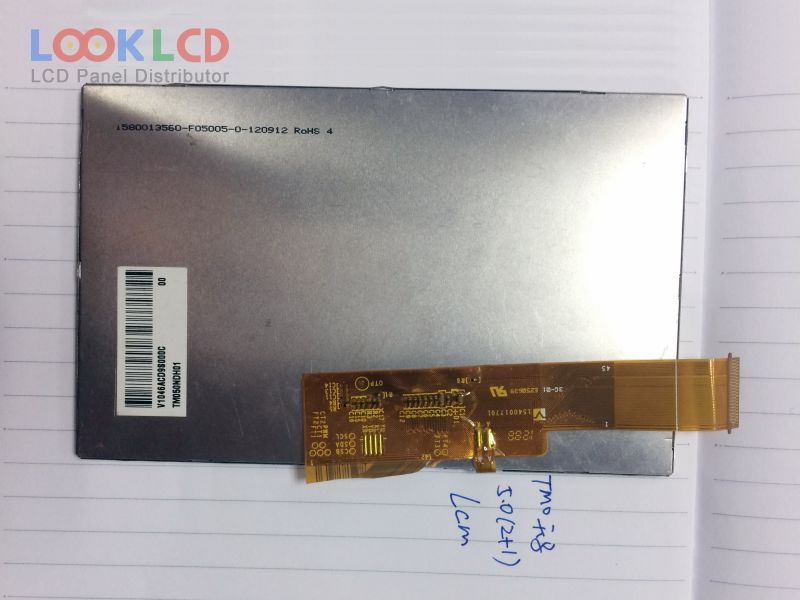

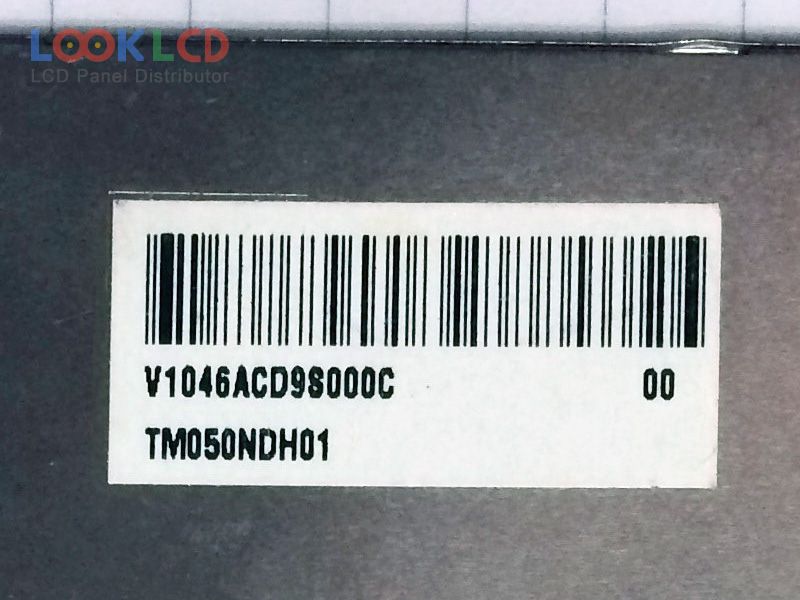

| Varenummer | TM050NDH01 |
| Mærke | Tianma |
| Størrelse | 5.0 |
| Ansøgning | PND |
| Løsning | 480×272 |
| Sammensætning | LCM |
| Lysstyrke | 280 |
| CR | 450:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | TIANMA |
| panel model | TM050NDH01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.0 inch |
| løsning | 480(RGB)×272 , WQVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 110.88×62.832 mm |
| overflade | Antiglare |
| lysstyrke | 280 cd/m² (Typ.) |
| kontrastforhold | 450:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193150% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S2PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit), 45 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PND |
| LTE052T-4301-1 | TPO | 5.0 | 320×234 |
| TM050JVZG28 | Tianma | 5.0 | 720×1280 |
| TM050LDZ00 | Tianma | 5.0 | 240×400 |
| TM050NDH01 | Tianma | 5.0 | 480×272 |
| TM050QDH01 | Tianma | 5.0 | 640×480 |
| TM050QDH06 | Tianma | 5.0 | 640×480 |
| TM050QDH07 | Tianma | 5.0 | 640×480 |
| TM050QDH11 | Tianma | 5.0 | 640×480 |
| TM050RBH01 | Tianma | 5.0 | 800×480 |
| TM050RDH03 | Tianma | 5.0 | 800×480 |
| 43WQW1H | SII | 4.3 | 480×272 |
| 43WVF1G | SII | 4.3 | 800×480 |
| LMS430HF20 | Samsung | 4.3 | 480×272 |
| LMS480KC02 | Samsung | 4.8 | 800×480 |
| LMS500HF13-002 | Samsung | 5.0 | 480×272 |
| LQ043T1DG01 | SHARP | 4.3 | 480×272 |
| LQ043T3DG01 | SHARP | 4.3 | 480×272 |
| LR043JC211 | Innolux | 4.3 | 480×272 |
| LR430RC9001 | Innolux | 4.3 | 480×272 |
| NL4827HC19-01B | NLT | 4.3 | 480×272 |
