| Varenummer | LH430WV1-SD02 |
| Mærke | LG Display |
| Størrelse | 4.3 |
| Ansøgning | MPH |
| Løsning | 480×800 |
| Sammensætning | LCM |
| Lysstyrke | 600 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| panel mærke | LG Display |

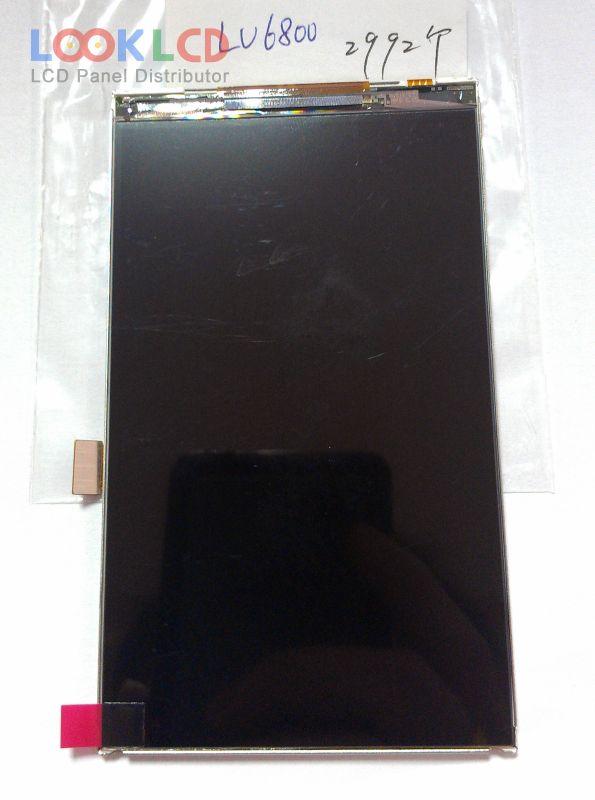

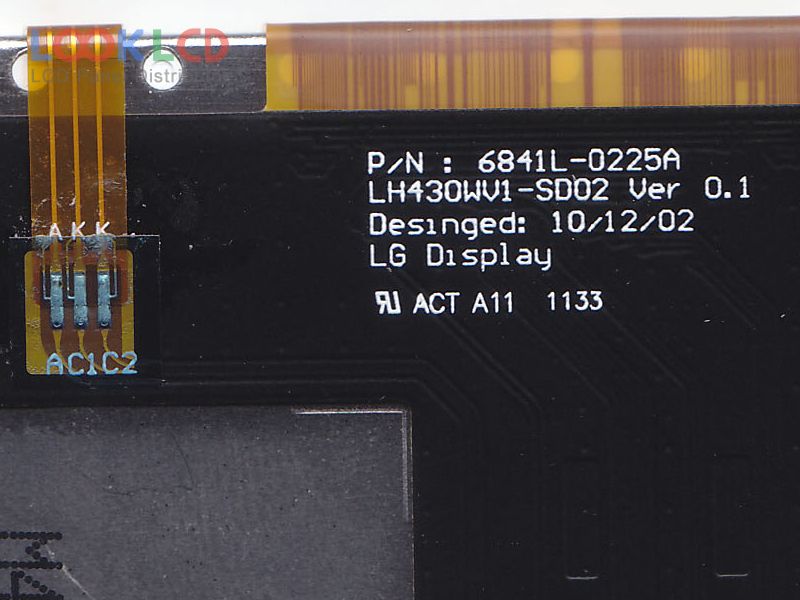

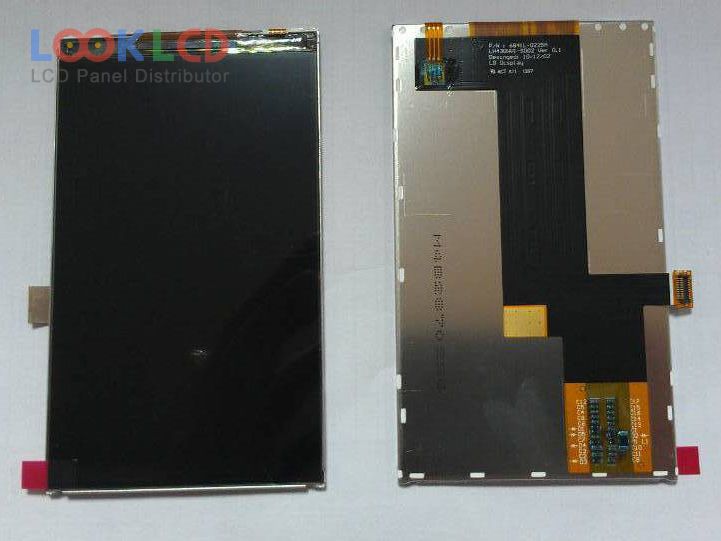

| panel model | LH430WV1-SD02 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 4.3 inch |
| løsning | 480(RGB)×800 , WVGA |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 56.16×93.6 mm |
| omrids | 60.06×102.87 mm |
| overflade | |
| lysstyrke | 600 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193170% |
| responstid | 40 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 5S2PWLEDWithout Driver |
| signal interface | MIPI (2 data lanes), 24 pins |
| indgangsspænding | 2.8/2.8V (Typ.)(VCC/VCI) |
| Ansøgning | MPH |
| 43WVF0H | SII | 4.3 | 800×480 |
| 990000475P | TPO | 4.3 | 800×480 |
| A043FW03 V2 | AUO | 4.3 | 480×272 |
| LB043WQ2-TD08 | LG Display | 4.3 | 480×272 |
| LB043WQ3-TD01 | LG Display | 4.3 | 480×272 |
| LH430WV1-SD01 | LG Display | 4.3 | 480×800 |
| LH430WV1-SD02 | LG Display | 4.3 | 480×800 |
| LH430WV3-SH02 | LG Display | 4.3 | 480×800 |
| LMS430HF20 | Samsung | 4.3 | 480×272 |
| LQ043T3DG01 | SHARP | 4.3 | 480×272 |
| AMFN888 | Samsung | 3.1 | 480×800 |
| AMS465GS53 | Samsung | 4.7 | 720×1280 |
| BTL454885-W698L | BOE | 4.5 | 480×854 |
| LH240Q29-SH04 | LG Display | 2.4 | 240×320 |
| LH350H02-FD02 | LG Display | 3.5 | 320×480 |
| LH467WX1-SD01 | LG Display | 4.7 | 768×1280 |
| LH500X01-SD01 | LG Display | 5.0 | 768×1024 |
| LMS245DC08 | Samsung | 2.4 | 480×360 |
| TD028STEB2 | TPO | 2.8 | 240×320 |
| TP241MC01G | Neoview Kolon | 2.4 | 240×320 |
