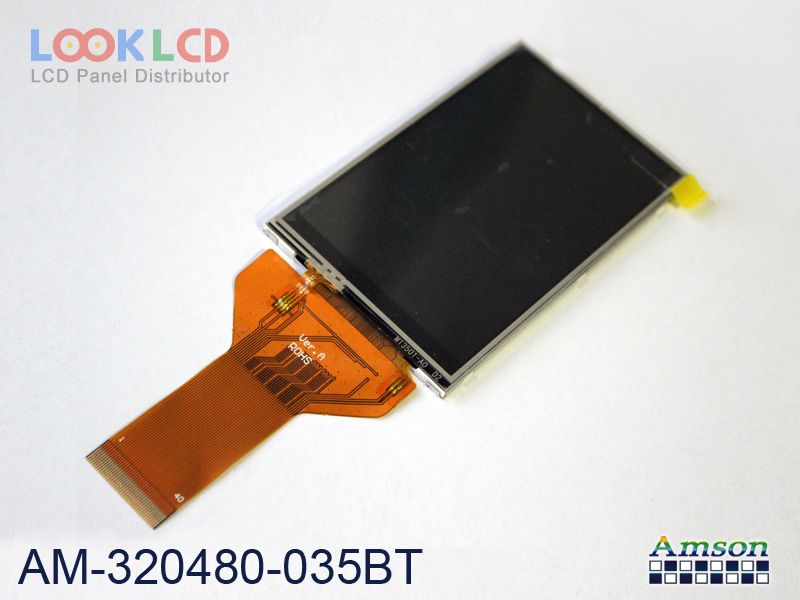

| Varenummer | AM-320480-035BT |
| Mærke | Other |
| Størrelse | 3.5 |
| Ansøgning | HHP |
| Løsning | 320×480 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | CPU |
| panel mærke | Amson |
| panel model | AM-320480-035BT |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 320(RGB)×480 , HVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 48.96×73.44 mm |
| omrids | 55.66×85.04×3.7 mm |
| overflade | |
| lysstyrke | |
| kontrastforhold | |
| vise farver | 262K (6-bit) |
| responstid | |
| synsvinkel | |
| lampe type | WLEDWithout Driver |
| signal interface | 8/16-bit 8080 parallel, 40 pins |
| indgangsspænding | (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) |
| Ansøgning | HHP |
