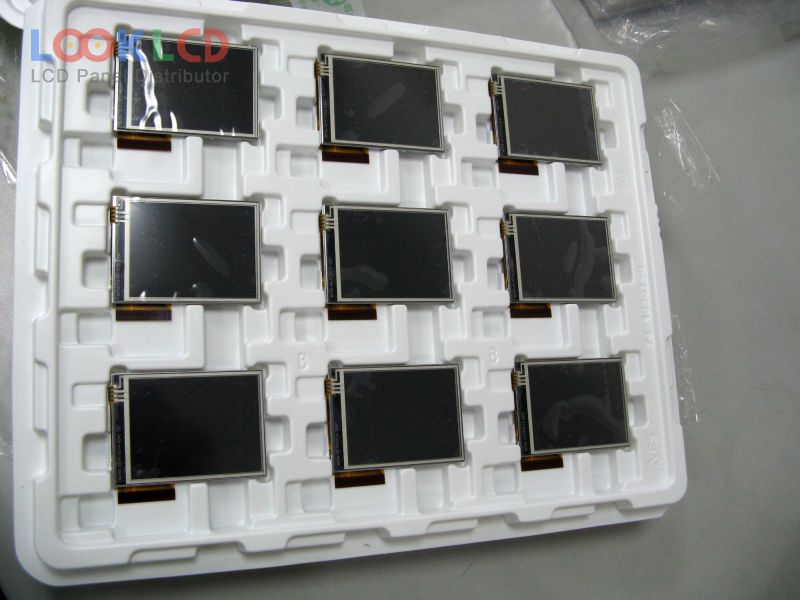

| Varenummer | ET028002DHU |
| Mærke | EDT |
| Størrelse | 2.8 |
| Ansøgning | MPH |
| Løsning | 240×320 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | CPU |
| panel mærke | EDT |
| panel model | ET028002DHU |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 2.8 inch |
| løsning | 240(RGB)×320 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 43.2×57.6 mm |
| omrids | 50.5×69.6 mm |
| overflade | |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K |
| responstid | 10/15 (Typ.)(Tr/Td) |
| synsvinkel | 75/70/75/55 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 1S4PWLEDWithout Driver |
| signal interface | CPU, 50 pins |
| indgangsspænding | 2.8V (Typ.) |
| Ansøgning | MPH |
