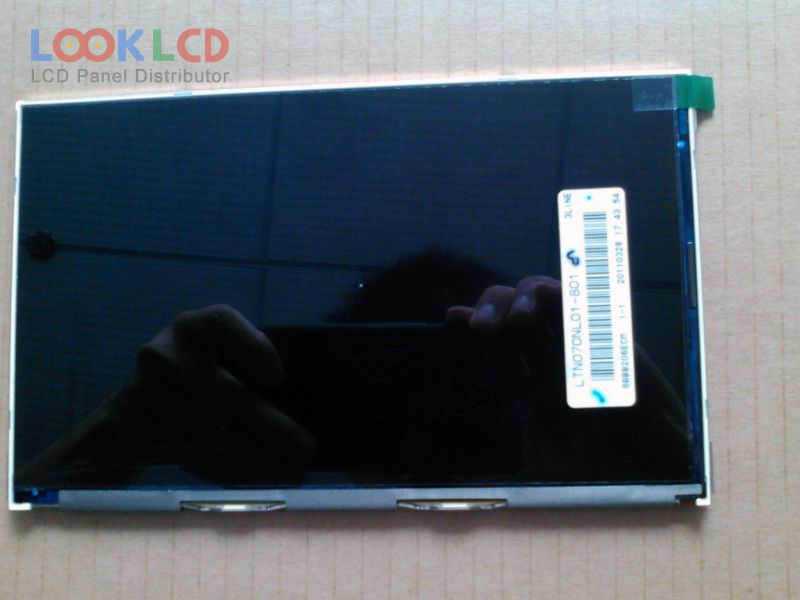

| Varenummer | LTL070NL01-801 |
| Mærke | Samsung |
| Størrelse | 7.0 |
| Ansøgning | PAD |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 800:1 |
| Farver | 16.2M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTL070NL01-801 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | PLS, Normally Black, Transmissive |
| aktivt område | 153.6×90 mm |
| omrids | 164.05×99.96×4.37 mm |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.2M (6-bit + FRC), CIE193150% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S4PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 8-bit) |
| indgangsspænding | 3.7V (Typ.) |
| Ansøgning | PAD |
