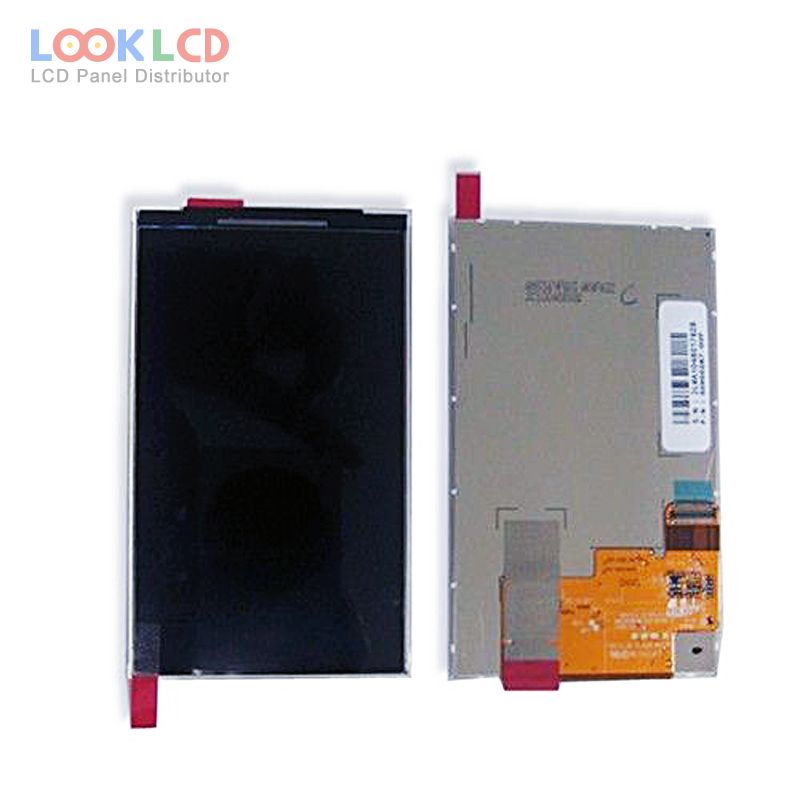

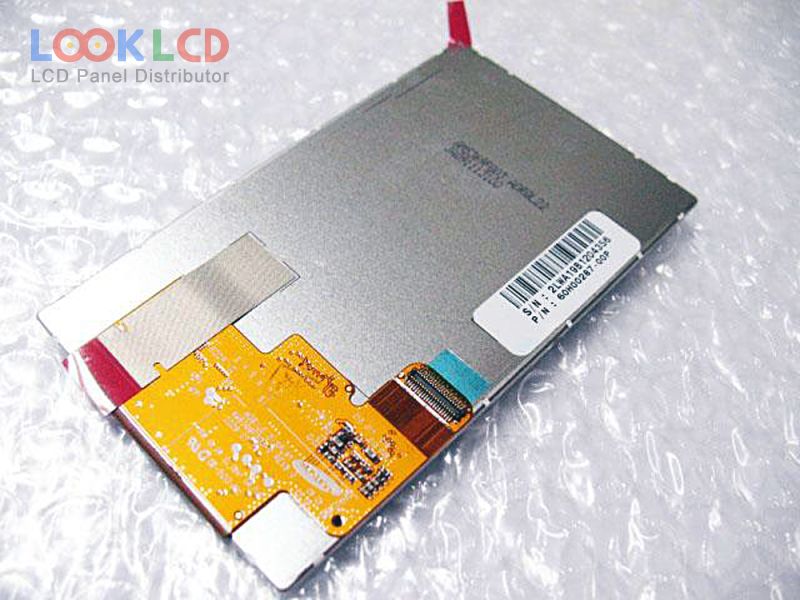

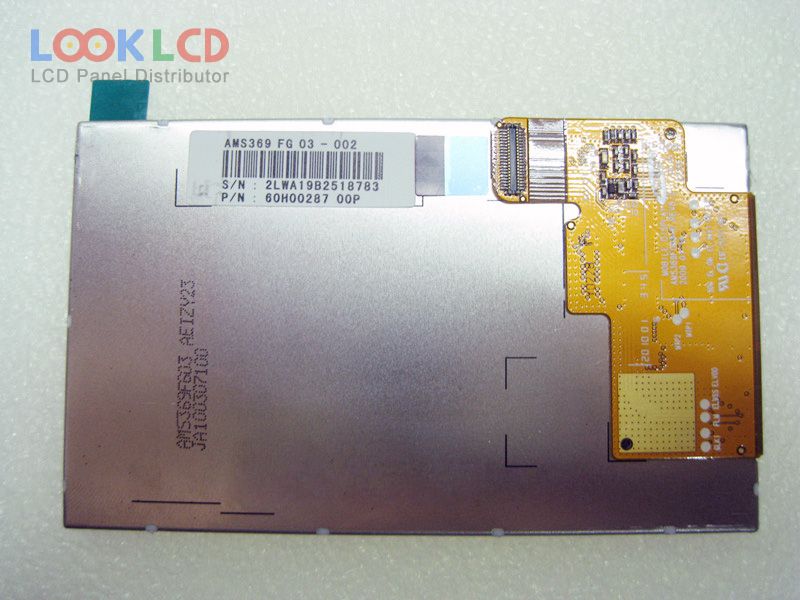

| Varenummer | AMS369FG03-002 |
| Mærke | Samsung |
| Størrelse | 3.7 |
| Ansøgning | MPH |
| Løsning | 480×800 |
| Sammensætning | OLED |
| Lysstyrke | 250 |
| CR | 10000:1 |
| Farver | 262K |
| Baggrundsbelysning | self |
| Interface | TTL |
| panel mærke | SAMSUNG |
| panel model | AMS369FG03-002 |
| paneltype | AM-OLED , OLED |
| panelstørrelse | 3.7 inch |
| løsning | 480RG(BG)×800 , WVGA |
| aktivt område | 48.24×80.4 mm |
| omrids | 53.94×90 mm |
| overflade | Hard coating (2H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 10000 : 1 (Typ.) |
| vise farver | 262K (6-bit), CIE1931106% |
| synsvinkel | 80/80/80/80 (Min.)(CR≥200)(L/R/U/D) |
| signal interface | Parallel RGB (1 ch, 6-bit) + SPI, 40 pins |
| indgangsspænding | 2.6/2.8/2.8V (Typ.)(IOVCC/VCC/VCI) |
| Ansøgning | MPH |
| ACX425AKM | SONY | 3.7 | 480×800 |
| AMS369FG03-002 | Samsung | 3.7 | 480×800 |
| AMS369FG06-0 | Samsung | 3.7 | 480×800 |
| AMS369FG07-002 | Samsung | 3.7 | 480×800 |
| HVA37WV1-M02 | HYDIS | 3.7 | 480×800 |
| LS037V3DX01 | SHARP | 3.7 | 640×480 |
| LS037V3DX02 | SHARP | 3.7 | |
| LS037V7DD05 | SHARP | 3.7 | 480×640 |
| LS037V7DD06 | SHARP | 3.7 | 480×640 |
| LS037V7DW03 | SHARP | 3.7 | 480×640 |
| DLC0220BMG | Other | 2.2 | 240×320 |
| DX08D11VM0AAA | KOE | 3.0 | 480×800 |
| LQ043Y1DX01B | SHARP | 4.3 | 480×800 |
| LQ047K3SX08 | SHARP | 4.7 | 720×1280 |
| LS026B8PX04 | SHARP | 2.6 | 240×400 |
| LS032B7LX02 | SHARP | 3.2 | 320×480 |
| LTS220QC-F0J | Samsung | 2.2 | 176×220 |
| TM018FDZ02 | Tianma | 1.8 | 128×160 |
| TM020GDZ25 | Tianma | 2.0 | 176×220 |
| TM028HDH21 | Tianma | 2.8 | 240×320 |
